SFTechnology

SFTechnology

Survey Meter

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

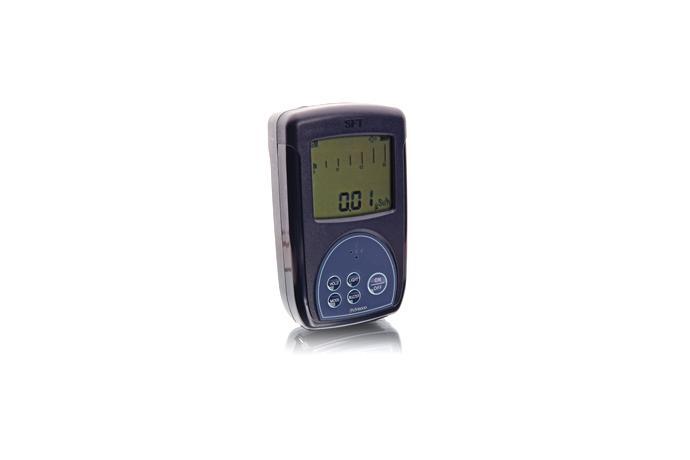

SFTechnology Survey Meter SVM-8600

Radioactive Maretial Monitoring System with CDMA and GPS
Long-Distance Area Monitoring with LAN
Quick responses and accuracy in both low and high radiation with Dual Sensor
Radioactive Experiments from Korea Atomic Energy Research Institute
Localized Product
Applied Semiconductor Sensor (First in Korea)
Superior response intensity about α, β, χ, γ-ray
Display the amount of radiation with Bar-Graph
Backlighting
Current Figure Fixation
Atomic Bombing Management and Monitoring with PC



Product Specification

Radiological
Display Units DOSE RATE : Sv/h (μSv/h, mSv/h, Sv/h), R/h (μR/h, mR/h, R/h), CPS and CPM
Measurement range Dose rate : 0.1 μSv/h to 1 mSv/h (0.01 mrem/h to 100 mrem/h)
Dose rate (Option : PIN Diode) : 0.1 μSv/h to 1 Sv/h (0.01 mrem/h to 100 rem/h)
Display Dose rate : 0.01 μSv/h to 1 mSv/h (0.001 mrem.h)
Dose rate (Option : PIN Diode) : 0.01 μSv/h to 1 Sv/h (0.001 mrem/h to 100 rem/h
Linearity Dose rate : < ± 15% up to 1 mSv/h (100 mrem/h)
Dose rate (Option : PIN Diode) : ± 15% up to 1 Sv/h (100 rem/h)
Accuracy < ± 10% (Cs-137, at 100 μSv/h)
Energy X and Gamma energy range : 30keV ~ 6 MeV
X and Gamma energy measurement range : ± 20%, 50 keV ~ 3 MeV (at Cs-137)
Angular < ± 20% (Cs-137, 0 ℃ ~60 ℃ )
Detected radiation Alpha, Beta, X and Gamma ray
Detector

GM-Tube (End window type)
Option : semiconductor

Environmental Operating Temperature : -10℃ to +50℃(+15 ℉ to 122 ℉)
Storage : -25℃ to +70℃
Humidity : 35℃ @ 40 % to 90 % R.H.



Electrical and Mechanical
Power Supply Two 'C' size 1.5V Alkaline battery (Life time : > 2000 hours)
audible 80 dB(A) at 10cm
Size 150 x 90 x 40mm
Weight 420g (including battery)
communication Infrared
Buttons 5 buttons (Power, Hold, Mode, Buzzer, Backlight)
Function

5 Digits
Display the amount of radiation with Bar-graph
Backlighting
hold (dose rate)
Battery monitoring

※ Product features and design can be changed for better performance.



Sofiwate

SVM - pro 1.0

SFTechnology Survey Meter SVM-8600 1


Applicable Field

Transportation of Atomic Materials, Workers in Atomic Field, Nuclear Power Plant, Nuclear Power Laboratory, Non-Destructive Test, 119 Rescue, Civil Deffense System, Fire Deffense Headquarters, Hospitals, National Defense System, Antiterrorism Organization, Police and so on



Option

Survey Meter Reader - SVMR 8500

SFTechnology Survey Meter SVM-8600 2

SVMR-8500 is made for transportation of radiation material vehicles(RI Carrying, Radioactive Waste Vehicle, Non-Destructive Testing Machine) and monitoring of Radiation Control Area with LAN.

SVMR-8500 is a Portable Extensive Survey Meter Reader and applies to CDMA(Cord Division Multiple Access) and GPS(Global Positioning System). It manages the amount of Radiation by storing data which is displayed in monitor with cable and

Download

Survey Meter SVM-8600
