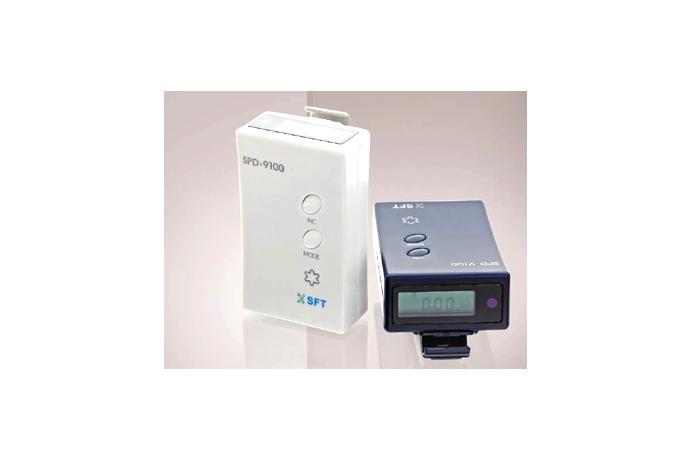

SPD-9100 is an Electronic Dosimeter invented by SFTechnology Co. It displays information on the amount of radiation with real-time indication and infrared communication, so you can manage radiation bombing systematically.
Electronic Dosimeter is convertible and designed for both Stand Alone Type for independent uses and System Type for atomic uses.
With the latest microprocessor technology, SPD-9100 displays information on the amount of radiation with real-time LCD, and also warns radial exposure with LED lamp and warning sound.
Working Environment
| Operating Temperature | -10 ℃ to 50 ℃ (+15 ℉ to 122 ℉) |
|---|---|
| Humidity | 0 % to 90 %, RH, at 35 ℃ |
| Storage | -25 ℃ to 70 ℃ |
| Drop | 1.5 m onto wood surface |
| Vibration | 2 g, 10 Hz to 30 Hz, 15 min |
| Microphonics | 60 times 0.1 m on steel surface |
| EMI / EMC | IEC 61000-4-2, 3, 8 |
Priduct Specification
| Radiological ( IEC61526 ) | |
| Display Units | DOSE : Sv (μSv, mSv, Sv) DOSE RATE : Sv/h (μSv/h , mSv/h, Sv/h) |
|---|---|
| Measurement Range | DOSE : 0.1 μSv to 10 Sv (0.01 mrem to 1000 rem) DOSE RATE : 0.1 μSv/h to 1 Sv/h (0.01 mrem/h to 100 rem/h) |
| Display | DOSE : 1 μSv to 10 Sv (0.1 mrem to 1000 rem) DOSE RATE : 1 μSv/h to 1 Sv/h (0.1 mrem/h to 100 rem/h) |
| Linearity | DOSE : <± 10 % DOSE RATE : <± 15 % up to 1 Sv/h (100 rem/h) |
| Accuracy | <± 10 % (Cs-137, at 10 mSv/h) |
| Energy | X and Gamma energy range : 30 keV ~ 6 MeV X and Gamma energy measurement range : ±30% 50 keV ~ 3 MeV (at Cs-137) |
| Angular | <± 20 % (Cs-137, 0° ~ 60°) |
| Detected Radiation | X and Gamma ray |
| Detector | Semiconductor |
| Electrical and Mechanical | |
| Power Supply | single AA battery 3.6 V Lithium (Life time : > 12 months) single AA battery 1.5 V Alkaline (Life time : > 6 months) |
|---|---|
| Alarm Sounder | 85 dB(A) at 10 cm, 3 different tones |
| Size | 80 × 48 × 24 mm (excluding clip) |
| Weight | 93 g (including battery and clip) |
| Communication | Infrared |
| Buttons | 2 buttons |
| Memory | Up to 512 data can be saved |
※ Product features and design can be changed for better performance.
Applicable Field
Atomic Facilities, Non-Destructive Test, Antiterrorism Organization, 119 Rescue, National Defense System, Environmental Organization This product can minimize radiation bombing of employees in radioactive environment with a basic concept of radiation protection(ALARA)
Option
Personal ADR Reader
PDR 9100
Electronic Dosimeter and Personal Dosimeter Reader are designed for RS-232C or wireless communication with USB, so users can manage data of Electronic Dosimeter easily by storing and editing after installing Rad-Reader in PC.
