SEWOO ENG

SEWOO ENG

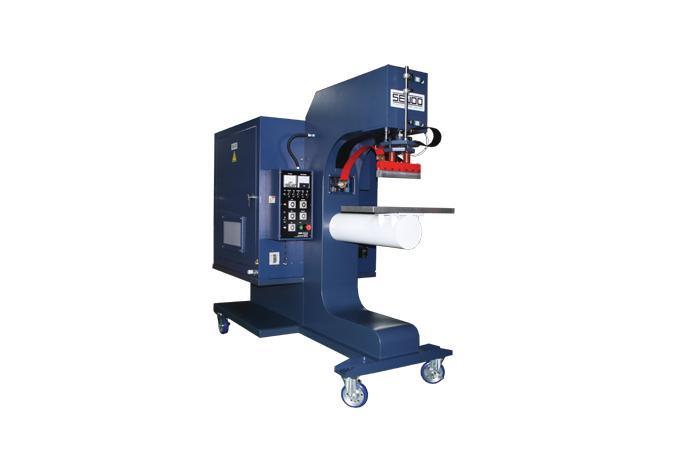

Tent (Tarpaulin) Welding Machine

Model

Series

Welding Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

SW-RT

Treadle operated accuracy of C-type press

with 2-guide post, linear motion bearing,

with adjustment and securing of

stroke position. Pneumatic cylinder and

welding timer will assure you an easy

operation of the machines and may be

equipped at your request.


SPECIFICATION

- Power Source : 220/380V 3Φ 60Hz

As per customer's instructions(overseas)

- MAX. Power Consumption : 30KVA

- MAX. High Frequency Output : 15kW

- Operating Frequency : 27.12MHz

- Oscillator Tube : 7T69RB

- Rectifier : Silicon diode

- Safety Device : Ultra sensitive

arc suppressor, O.C.R

- Max. Pressure : 471Kgf

- Pressure Device : Pneumatic cylinder

direct pressing

- Stroke : 200mm

- Size of Electrode : Bar holder type

- Size of Platen : 300 x 600mm

- Overall Dimensions : 1000 x 2000 x 1900mm

- Gross weight :
