  • SEPA KOREA

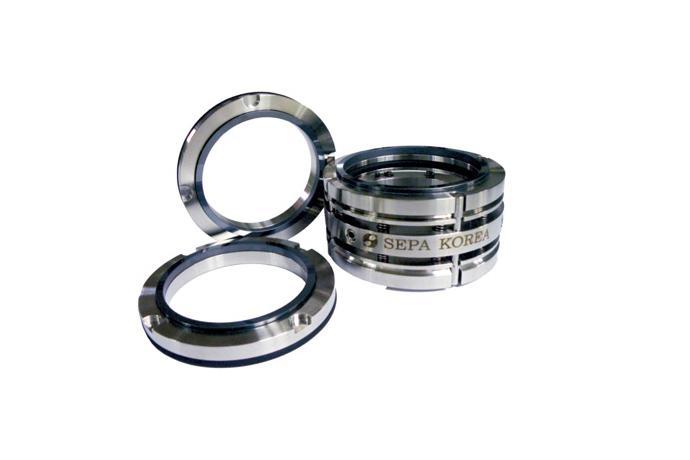

    DBM Double Seal Type
    Model
    -
    Series
    Mechanical Seal

    Product Description

    FEATURES

    Operating Limits

    Pressure : Full Vacuum up to 10kg/cm2

    Velocuty : Up to 15m/sec

    Viscosity : 300cp

    Temperature : -30deg.C ~ 250deg.C

    Slurry : Up to 0.5%



    1. Seal Face Materials

    A : Carbon / B : Stellite Coat / C : Ceramic Coat / D : T/C Coat

    E : T/C Plate  / F : SIC Plate / G : Ceramic (AL2O3) / H : Solid SIC

    I : Solid T/C / S : Special



    2. Packing Materials

    C : Teflon Carbon / E : E.P.R G : GrafoilKKalrez

    N : N.B.R PPerfluoro QF.E.P (Glass Filled Teflon)

    T : Teflon  / V : Viton



    3. Body & Spring Materials

    2 : Carpenter 20 3Titanium 4 : STS304

    5STS316L  / 6 : STS316 7Hastelloy B

    8Hastelloy C   9Monel Alloy
