LVDS DVR

Medical camera with recording solution

description

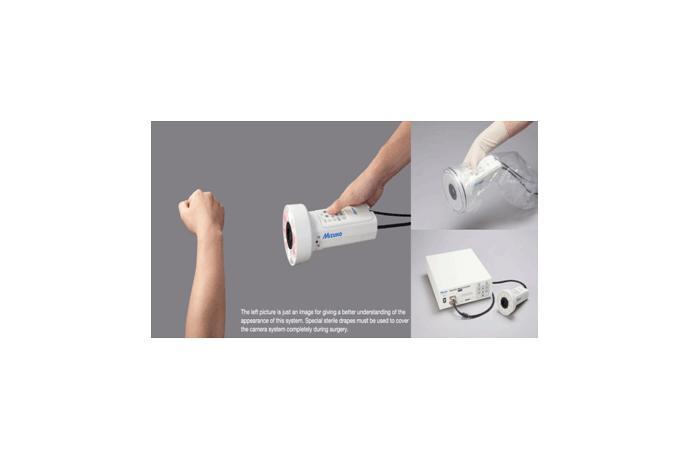

The medical camera is simple structure that simply consists of one image sensor (CCD) andcamera.
The unique CCD image sensor enable you to take simultaneously visible light and near-infrared images.
You can capture more natural color images than you ever donebefore.
You don't need to have difficult processing.
(e.g. overlay images) Real time imagingcan be consummate. (Frame rate 30fps)

Specification

Power Requirement
 Voltage AC100V
 Freguency 50Hz/60Hz
 Power input 1.35A

Dimensions and weight
 Camera Unit
 Dimension 100(W)X188(D)X102(H)mm excluding protrusions
 Weight 0.5kg(excluding controller and cable)

Function
 Focus/Zoom
 Switching function of Color flurescent images and Monochromatic
 fluorescent images
 Contrast adjustment function, Exposure compensation function

LED
 NIR excitation LED(tunable), supplemental lighting White LED(tunable)

Controlller Unit
 Dimension 300(W)X305(D)X100(H)mm
 Weight 5.4kg
 Video-out BNCx2. DVI-Ix2
