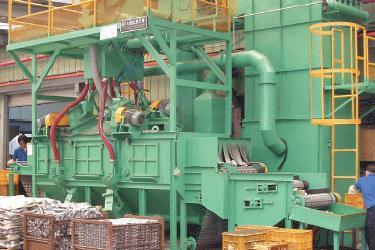

Wire Mesh Belt Type Shot Machine
Model
Series
Shot Machine
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
RESISTANCE WIRE MESH BELT CONVEYOR에 가공품을 올려놓으면 CONVEYOR가 진행하면서 투실에 4~8대의 IMPELLER로 SHOT처리하여 가공하는 기종으로 전 후 생산라인과 연계하며 무인 자동 시스템에 적용되는 설비이다.
| ITEMS / MODEL NO. | SKAL-600 | SKAL-700 | SKAL-800 |
| WIDTH OF WORKPIECE | 600W | 700W | 800W |
| IMPELLER UNIT | Ø280×50W | Ø360×62W | Ø360×62W |
| IMPELLER MOTOR | 7.5HP×8SET | 10HP×8SET | 15HP×8SET |
| BELT WIDTH | 800W | 900W | 1000W |
| DUST COLLECTOR | 80㎥/min | 100㎥/min | 150㎥/min |
