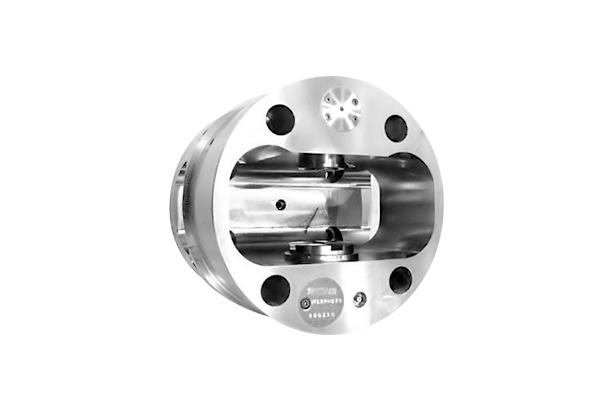

    HIGH CLAMP AUTO INDEX CHUCK (SM-HSRP)
    Model
    SM-HSRP 265
    Series
    Special Chuck

    Product Description

    Feature

    • This chuck using to complete finishing of the processing materials 4 sides or 8 sides by one time clamping.

    • It is able to automatic indexing of 90° or 45°, Even if the machine spindle under rotating.

    • This chuck has powerful clamp function by the grasp power added increasing more than the HSR Model.



    Outward Drawing





    Technical data and specifications

    Specifications

    Spec
    Model
    Spindle nose NO.weight(With standard soft jaws)Gd moment of inertia
    SM-HSRP 265ASA No.65824.5(2.5)
    SM-HSRP 265ASA No.85824.5(2.5)
    Spec
    Model
    Gripping forceMain spindle bore speed
    SM-HSRP 26534.31(3500)Over 45
    SM-HSRP 26518.63(1900)Over 45




    Dimension

    Item
    Model
    ACDEFGH
    SM-HSRP 2652652082137548119100
    SM-HSRP 265
    Item
    Model
    KLMRSTBro
    SM-HSRP 2654651201714-M1626210
    SM-HSRP 265
