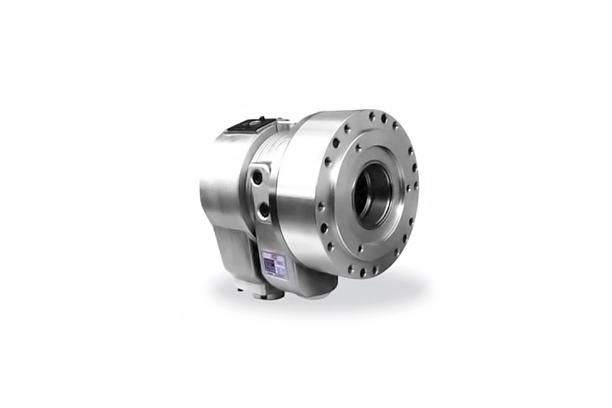

SUPER HIGH SPEED BIG BORE HYDRAULIC CYLINDER(YSH)

Model Name

YSH-05

Series

Hydraulic Cylinder / Big Bore Type

View AllView All Series

Data

DRAWING-SEOAM-SUPER HIGH SPEED BIG BORE HYDRAULIC CYLINDER-YSH-05

Manufacturer information

SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SEOAM

Product Type

Machine

Brand

SKU

126681

Product Name

SUPER HIGH SPEED BIG BORE HYDRAULIC CYLINDER(YSH)

Model Name

YSH-05, YSH-06, YSH-08, YSH-10, YSH-15, YSH-21

Size

Weight

Product Details

Feature

• Compatibility : The mounting face and major parts are mutually compatible with YAH type cylinder.

• Small Size & Light Weight : Is it 30% shorter than YAH type cylinder so that it is small in size, light in weight and high speed rotation.

• Safety Guaranteed : It contatins check valves so that pulling force is kept for a certain time upon power failure, securing safety.

• Leakage Prevention Design(Patent Registration:0172805) : Cylinder body is designed with a leakage prevention structure to totally eliminate the possiblility of leaking.

• Highest Draw Pull : As weight is reduced and draw pull is increased, it gurantees the best machining efficiency and stronger power.

Outward Drawing

Technical data and specifications

Model Description

Specifications

Spec Model	Order NO.	Max. Permissible speed r.p.m	weight(With standard soft jaws)	Gd moment of inertia	Cylinder dia	Piston stroke	Thru hole dia
YSH-05	2SH05	8000	7.3	0.09(0.010)	105	15	36
YSH-06	2SH06	7000	9.5	0.20(0.021)	130	16	46
YSH-08	2SH08	6200	13.5	0.39(0.040)	156	22	52
YSH-10	2SH10	5000	16.8	0.81(0.083)	185	25	77
YSH-15	2SH15	3000	52	18.6(1.9)	255	23	117.5
YSH-21	2SH21	2000	77	29.43(3)	280	51	166.5

Spec Model	Piston surface area extend	Piston surface area retract	Max draw bar pull extend	Max draw bar pull retract	Max operation pressure	Total leakage	Matching chuck
YSH-05	67.15	64.47	25(2549)	24(2447)	40.8	3	CAH-05
YSH-06	107.29	95.53	39(40250	35(3586)	40.8	3	CAH-06
YSH-08	159.77	148.62	57.6(5879)	53.6(5469)	40.8	3.9	CAH-08
YSH-10	209	193.9	77.9(7944)	72.1(7357)	40.8	4.2	CAH-10
YSH-15	384.3	351.7	136.8(13953.5)	125.2(12770.1)	40.8	7
YSH-21	372.1	327.1	111.5(11376)	98(10002)	33.6	8.4	CAH-21,24

Dimension

Item Model	C	D	E	F	G	H	J	K	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10 Max
YSH-05	137	115	100	65	48	38	108	76	94.2	8.9	69	6	15	25	7	5	99.5	36
YSH-06	165	130	100	80	65	50	108	82.5	97.3	7.4	72.5	6	15	30	7	5	102	37
YSH-08	190	170	130	90	70	55	126	90	100.1	8.9	74	6	15	30	7	5	105.2	43
YSH-10	222	190	160	120	95	80	164	121	115.2	12.7	86	5	15	35	7	5	112.5	46
YSH-15	307	275	230	170	140	123	216	167	141.5	18.5	102	6	20	45	9.5	6	163	46.3
YSH-21	354	290	260	240	190	170	278	217	182.5	18.5	139	7	20	45	9.85	5	200	76.3

Item Model	L10 Min	L11 Max	L12	L13	L14	L15	L16	M	N	O	P	Q	T1	T2	T3	T4	T5
YSH-05	21	15	134.1	66.5	34	115	55	64	42	36	45	98	6-M10X18	M42XP1.5	M44XP1.5	PT-3/8	4-M5X10
YSH-06	21	16	135.6	78	42	120	55	74	50	46	53	98	6-M10X18	M55XP1.5	M52XP1.5	PT-1/2	4-M5X10
YSH-08	21	22	140	80	36	130	55	81	56	52	60	113	6-M10X18	M60XP2.0	M58XP1.5	PT-1/2	4-M5X10
YSH-10	21	25	165	92.5	40	215	55	110	81	77	85	155	6-M10X18	M85XP2.0	M84XP2.0	PT-1/2	4-M5X10
YSH-15	23.3	24	214	140	40	215	55	152	122	117.5	125	198	12-M16X32	M130XP2.0	M124XP2.0	PT-1/2	4-M6X15
YSH-21	25.3	51	259.5	172.6	40	250	55	205	170.5	166.5	175	256	12-M16X32	M180XP3.0	M173XP2.0	PT-1/2	4-M6X10
