  • SEOAM

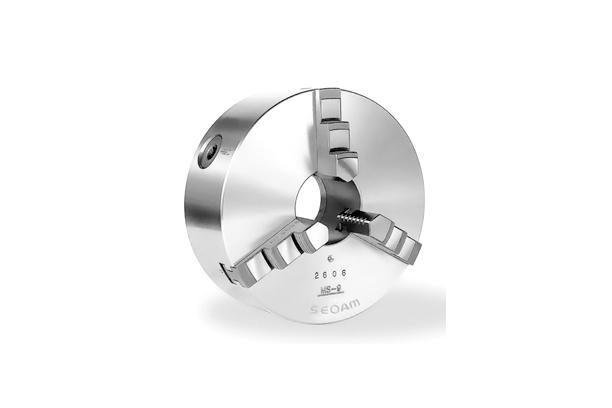

    3-JAW SCROLL CHUCK (MS)
    Model
    MS-10, MS-12, MS-14, MS-3, MS-4, MS-5, MS-6, MS-7, MS-9
    Series
    Chuck / Manual Type

    Product Description

    Features

    • Most general model : This chuck, with both KS and JIS Standard, is most widely used for general purpose lathes. A separate adapter is used when attached to a lathe.

    • High quality, long durability : Internal stress and deformation have been precluded by using high quality cast body. The major parts are made of heat-treated alloy steel.
                                                        Good durability has been achieved due to extended abrasion resistance and improved quality.

    • Compatibility : Compatibility of major parts such as a jaw has been enabled thank to quality standardization and precise dimension mangement.

    • Parts : External jaws are attached to the chuck and internal jawss, fastening handles and mounting screws are included as standard parts.



    Outward Drawing





    Technical data and specifications

    Model description




    Specifications

    Spec
    Model
    Order NO.Thru-hole(Diameter) mmMax. Permissible speed r.p.mweight(With standard soft jaws)Chuck size
    MS-300103E1625001.585
    MS-400104E2425001.5110
    MS-500105E3225004.5130
    MS-600106E4540007.5165
    MS-700107E55350011.5190
    MS-900109E70290019230
    MS-1000110E85250026273
    MS-1200112E96220038310
    MS-1400114E100150054355
    Spec
    Model
    Gripping forceGripping dia external MaxGripping dia external MinGripping dia internal MaxGripping dia internal Min
    MS-39007026424
    MS-412009538429
    MS-51500110310033
    MS-63000160315048
    MS-73600180417056
    MS-93900220521062
    MS-104500260525070
    MS-1254003001029086
    MS-14405031525290107



    Dimension

    Item
    Model
    ABCDEF
    MS-385457360167
    MS-4110589580248
    MS-513060115100328
    MS-6165651471304510
    MS-7190751721555511
    MS-9230842101907012
    MS-10273862502308512
    MS-12310962852609614
    MS-1435511032830010014
    Item
    Model
    GHIJK
    MS-33.514.63-M63511
    MS-44.517.63-M84214
    MS-54.5203-M85016
    MS-65253-M106519
    MS-75303-M107522
    MS-96353-M128524
    MS-106403-M129829
    MS-127453-M1211030
    MS-147636-M1213335
