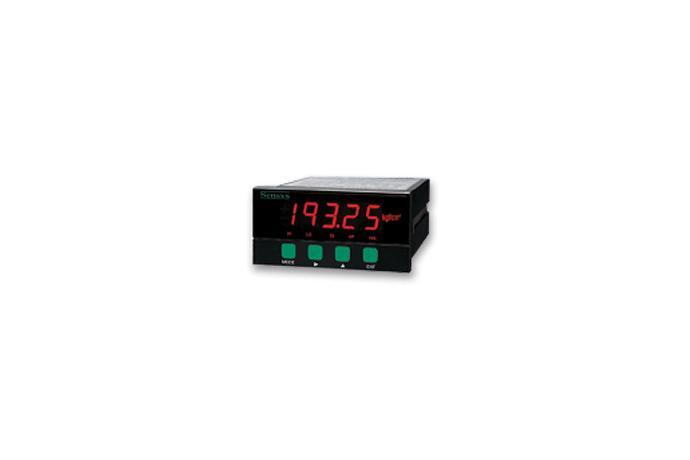

SC1400 and SC2400 Indicators have a Micro Processor. The model apply for proper performance. 4CH Relay Output is possible.(A1~A4 have each point of contract) Easy setting by click the front button, it is possible to set Alarm, full scale values, the decimal point and Calibration. When power outages it retains its data.


- Input Signal: 1~3mV/V(SC1400), V or mA(SC2400)
- SETTING LED & DISPLAY LED
- Max Readout : ±19999
- Auto Zero Point Setting
- Analog Output : 0, 1~5V, 10V, 4~20mA(DIP S/W)
- Function: Data Hold, Peak Hold, Reset
- Frequency Filter : 10Hz, 100Hz, 1kHz, 4kHz(DIP S/W)
- 48mm×96mm Aluminum Case
