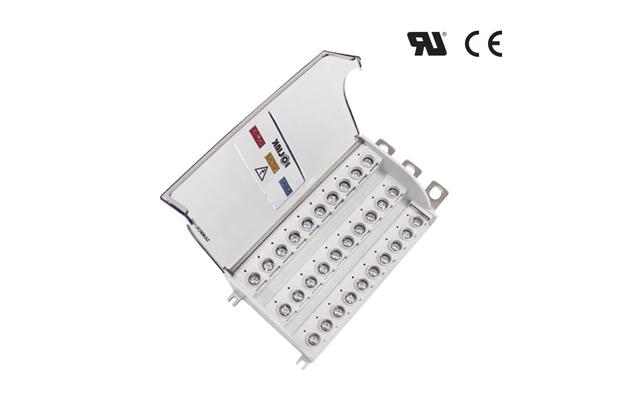

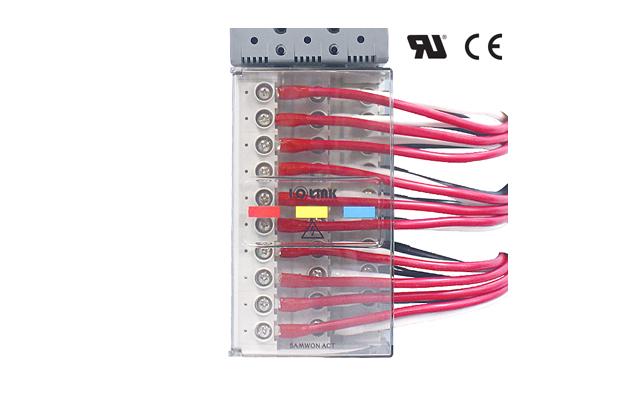

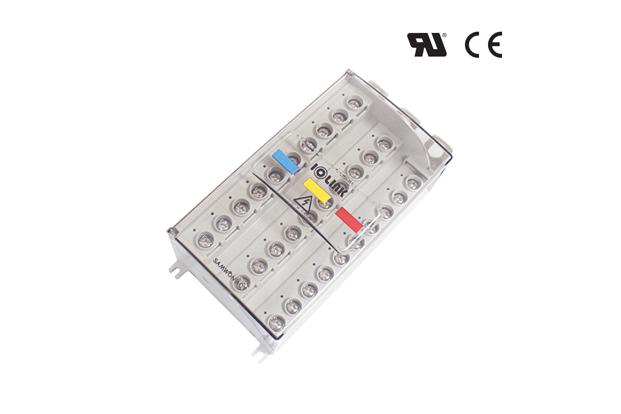

BPD Series
Circuit breaker direct-coupled busbar-type power distribution block
Features
- A power distribution block direct-coupled with circuit breaker suitable for busbar use environments
- Can be direct-coupled with MCCB at the same width as 225, 250 AF (Ampere Frame)
- Reduced short or shock risk with only the terminal mounting part in the integrated case exposed
Main Features
|
A case-integrated power distribution block that can serve as a replacement in an exposed busbar environment |
|
|
Structure with excellent convenience and stability Hinge-type PC cover and flame-resistant (UL-94V) case / V-shaped grooves for slip prevention on terminal and wave washer bolts that are resistant to vibrations / terminal twisted pair crossed cable is possible in a tiered structure |
Various color-coded plates are built-in, so it can be installed according to the user's purpose Built-in: red, white, yellow, black, blue, green / sold separately: brown, gray |
