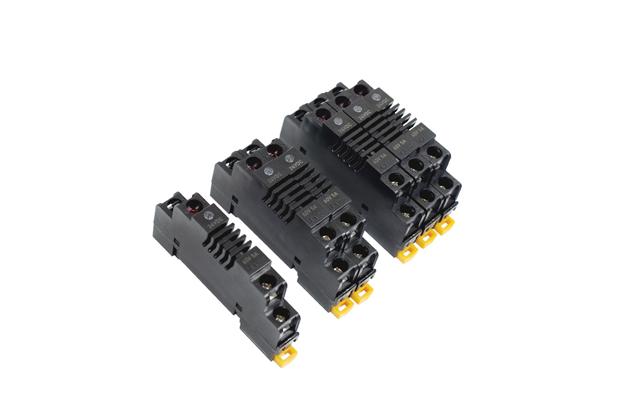

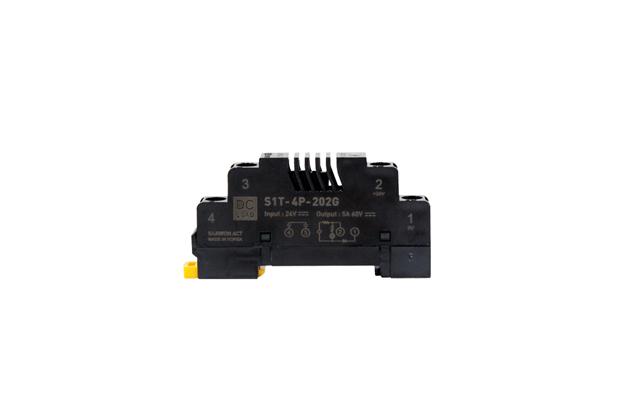

S1T-4P-202G
1-point, output load capacity 5A
Features
- Korea's first contact capacity 5A, 1-point solid-state power relay board
- Easy to check operation status by attaching contact LED
- Easy to work with a structure that can be mounted on a DIN rail
- Can be installed in a narrow space of 10 mm, the width of the product is similar to that of the terminal block.
- Easy wiring by using the built-in common bar
Main Features
|
PhotoMOS relay for power Rated load specification of load-side load 60V 5A for the first time in Korea, very suitable for heavy load control |
|
|
Solid-state, long-life, and semi-permanent product |
Usage Loads with high opening/closing frequency, systems that require high-speed response |
