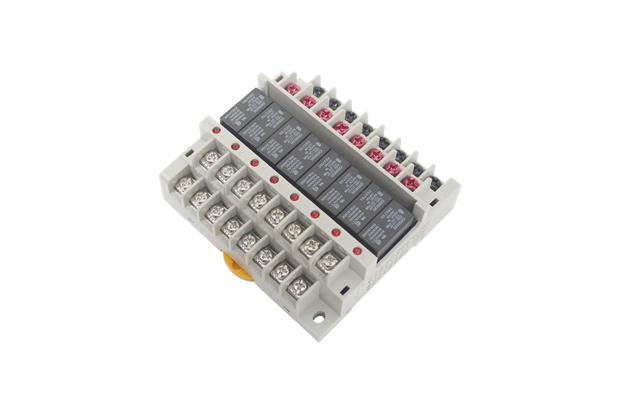

Korea's first case-integrated 8-point relay board

Economical type that reduces assembly labor as an 8-point product that expands the previous 4-point type board

Equipped with OMRON G6B-1174P-FD-US relay

Long-life relay resistant to inductive and capacitive loads / Strong against surge by using AgSnln contact material

Improved stability and convenience

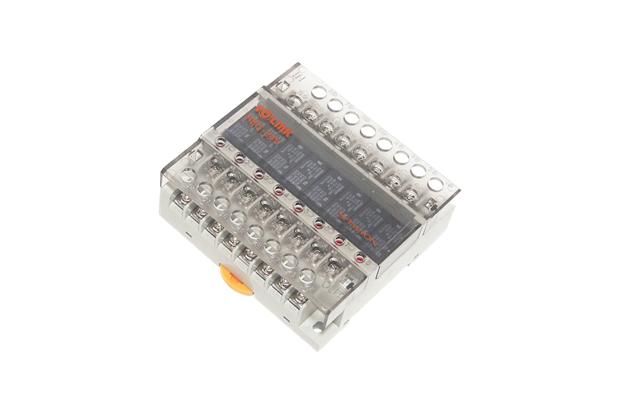

A diode for surge absorption is installed on the coil side to improve safety and protect the device / Suitable for export by attaching a protective cover according to the Product Liability Act / Built-in two short bars for common to improve workability of workers

Provide various applications

Other than G6B-1174P-FD-US, G6B relay-equipped products can also be developed and supplied
