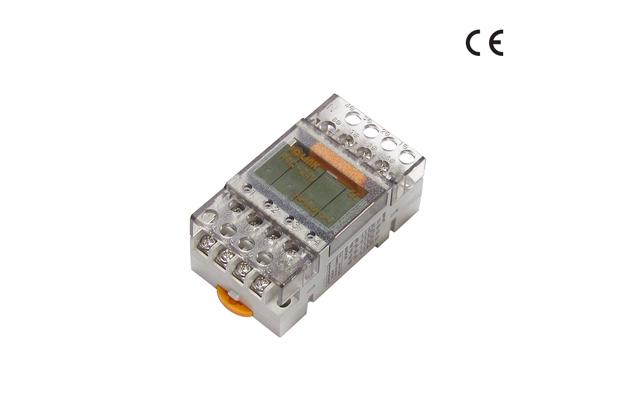

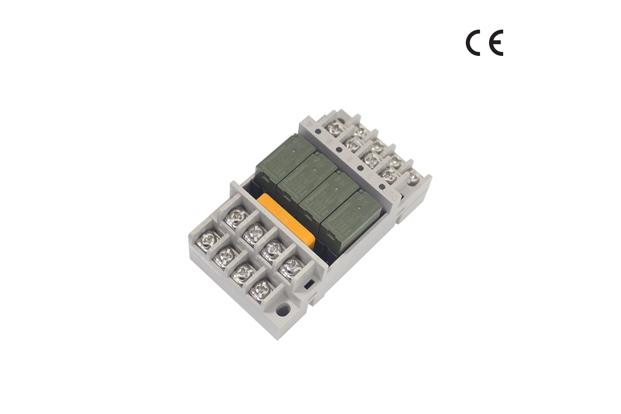

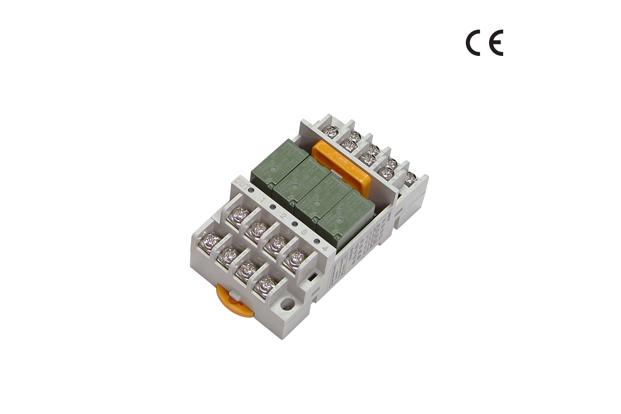

R4Q-24V
Equipped with 4 points, width 10mm PANASONIC PQ relay
Features
- Long-life, large-capacity relay board resistant to inductive loads
- High workability due to DIN rail mounting and direct attachment to the middle plate
- Safe structure that enables wiring even with a protective cover installed
- Equipped with a relay socket, maintenance is easy and economical
Main Features
|
Equipped with long-life, large-capacity, width 10mm large power relay Powerful switching range of 1a contact, 100㎂ 100mV 5A 250V AC, 5A 30V DC, suitable for inductive load / Strong against noise (Min. 8,000V) / Twin-type contact structure, very high contact reliability / Equipped with PANASONIC PQ relay (Made in Japan) |
Safety protection cover attached Significantly improved user safety by attaching a protective cover in preparation for the Product Liability Act |
|
Realization of miniaturization of control panel with width 43.6mm |
Design with safety first Built-in surge absorption circuit (diode) protects the controller circuit and prevents malfunction / Attachment of LED for easy operation check |
