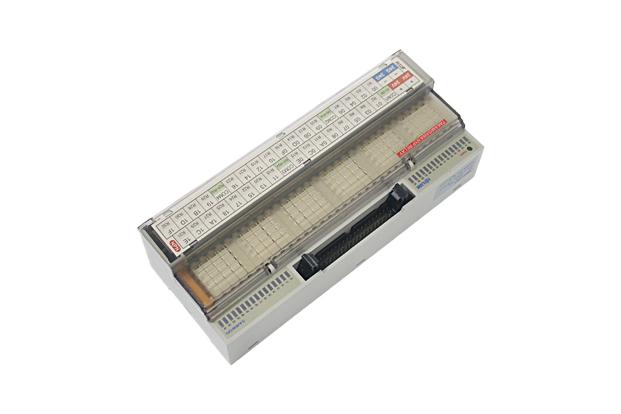

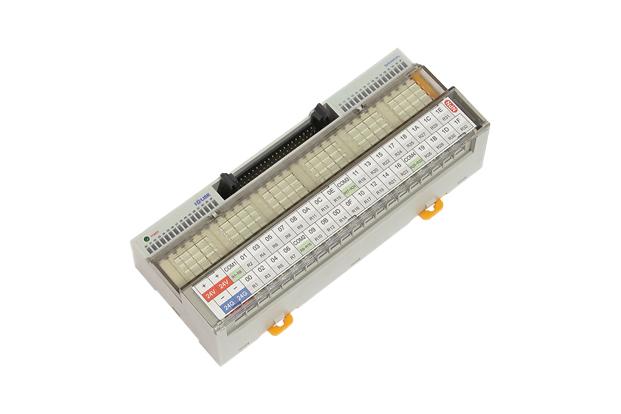

R32F Series
32-points, terminal block separated-type
Features
- Load-side terminal block separated-type, 32-point relay board, improved workability and convenience

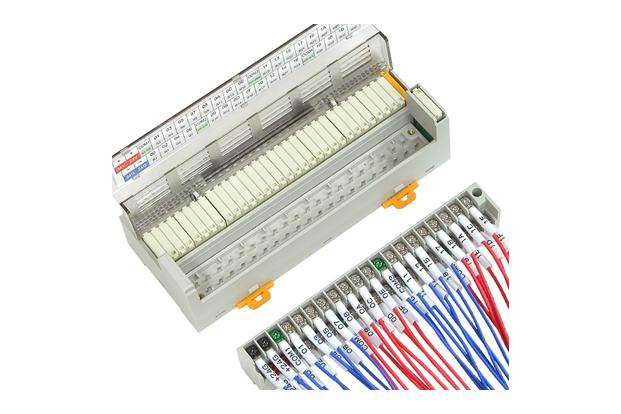

- When wiring the control panel, only the terminal block is separated, wired, and mounted on the relay board body, improving workability and convenience
- When replacing the relay board, maintenance is easy because only the terminal part can be separated and replaced without disassembling the terminal wiring
Main Features
|
Production of two types of relay boards, long-life and economical Long life relay board: TAKAMISAWA NYP relay mounted / Economy relay board: PANASONIC PA-N relay mounted |
Separate production of products equipped with Varistor for contact protection Varistors are attached to both ends of the relay contact in parallel to protect the contact from arcs generated when the contact is opened/closed, and the life of the relay is extended |
|
Improved stability and convenience Improved workability by attaching LED for relay operation check and mounting on DIN rail / Protection of controller circuit and prevention of malfunction by installing surge absorption circuit on the coil side / Improved contact reliability by applying gold-plated contacts to the separation terminal block |
Supply of cables that can be connected to various PLCs and controllers Able to respond to small quantity orders of various types by securing connectors used for domestic and overseas PLC, machine tools, DCS, DCC, etc. at all times |
