SAMWHA ELECTRONICS

SAMWHA ELECTRONICS

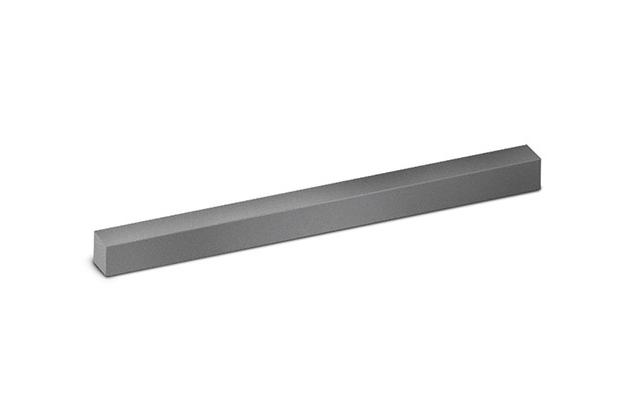

Block Core

Model

Series

Ferrite Core


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

Introduction

Assembling standard blocks makes larger dimension and variety of shapes customer wants. Very easy to get high output power for especially solar application.



Features

Fe-Si material is used to get higher DCB characteristic.



Applications

Sutable for reactors of solar power.



Cross Reference





Part No. Unit dimension
Length×Width×Height
A. value Path length Cross
Section
(㎤)
Window
Area
(㎤)
Comment
SB5315 50mm×30mm×15mm 121 18.71 4.5 10 Assembled
with 4 pcs
SB5320 50mm×30mm×20mm 165 18.28 6 5
SB6315 60mm×30mm×15mm 100 22.71 4.5 18
SB6320 60mm×30mm×20mm 135 22.28 6 12
SB7315 70mm×30mm×15mm 85 26.71 4.5 28
SB7320 70mm×30mm×20mm 115 26.28 6 21
SB8315 80mm×30mm×15mm 74 30.71 4.5 40
SB8320 80mm×30mm×20mm 100 30.28 6 32
