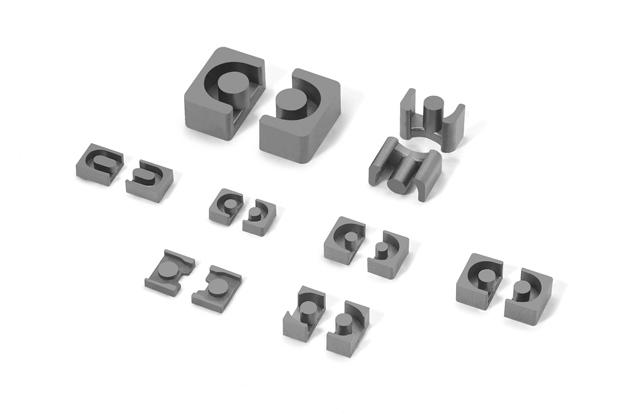

EP Core
Model Name
-
Size
-
Weight
-
Product Details
Introduction
PCB의 집적율을 높이는 Cubic 형상으로 설계된 제품이며 낮은 THD특성을 갖는 PL-7, ST-30B 등의 재질이 적용된다.
Features
최근에는 power application에도 사용되는 추세이며 권선부위가 코아로 둘러싸여 있어 차폐가 용이한 특성이 있다.
Applications
TRANSFORMER, xDSL 등 통신용 등에 일반적으로 사용된다.
| Part No. | Type | Dimensions in mm | |||||
| A | B | C | D | E | F | ||
| EP5D | EP-ⓑ | 5.33±0.10 | 5.33±0.20 | 3.48±0.10 | 3.91±0.10 | 1.68±0.10 | 3.92+0.16 /-0.06 |
| EP7 | EP-ⓐ | 9.2±0.20 | 7.4±0.20 | 6.35±0.15 | 7.4±0.20 | 3.3±0.10 | 5.2±0.20 |
| EP10 | EP-ⓐ | 11.5±0.30 | 10.2±0.20 | 7.65±0.20 | 9.4±0.20 | 3.3±0.15 | 7.4±0.20 |
| EP13 | EP-ⓐ | 12.5±0.30 | 12.85±0.15 | 8.8±0.20 | 10±0.30 | 4.35±0.15 | 9.4±0.20 |
| EP13F | EP-ⓐ | 12.5±0.30 | 13.05±0.15 | 8.8±0.20 | 10±0.30 | 4.35±0.15 | 9.4±0.20 |
| EP17 | EP-ⓐ | 18±0.40 | 16.8±0.20 | 11±0.25 | 12±0.40 | 5.68±0.20 | 11.3±0.30 |
| EP20 | EP-ⓐ | 24±0.50 | 21.4±0.20 | 14.95±0.35 | 16.5±0.40 | 8.75±0.25 | 14.3±0.30 |
| Part No. | Type | Dimensions in mm | |||||||
| A | B | C | C2 | D | D2 | E | F | ||
| EOP9.0 | EOP-ⓐ | 9.4±0.40 | 7.5+0/-0.20 | 9+0/-0.40 | 5.6±0.20 | 7.2+0.40 /-0 |
3.3±0.10 | 4.6+0.40 /-0 |
|
| EOP9.5 | EOP-ⓐ | 9.45±0.20 | 8.5±0.20 | 10.1±0.15 | 6.5±0.15 | 7.5±0.20 | 3.13±0.10 | 5.46±0.20 | |
| EOP9.5D | EOP-ⓑ | 9.5+0/-0.40 | 8+0.60/-0 | 7.7+0/-0.30 | 5.74±0.10 | 7.1+0.40 /-0 |
4.5 ref. | 3.13±0.10 | 5.46±0.20 |
| Part No. | Type | Dimensions in mm | |||||||
| A | B | C | C2 | D | D2 | E | F | ||
| ELP1205P | ELP-ⓑ | 12.2+0.10 /-0.40 |
5.2±0.20 | 9±0.20 | 7.3±0.15 | 10±0.20 | 8.9±0.20 | 5.4 max. | 3±0.20 |
| ELP1623S | ELP-ⓐ | 16.5±0.30 | 23.4±0.20 | 8.7±0.20 | 12.5±0.30 | 9±0.50 | 5.7±0.10 | 17.4±0.20 | |
| ELP2522S | ELP-ⓐ | 25±0.40 | 22.4±0.20 | 12.9±0.30 | 19±0.30 | 13.5±0.50 | 8.6±0.20 | 16.4±0.30 | |
| ELP2532S | ELP-ⓐ | 25±0.40 | 31.8±0.20 | 12.9±0.30 | 19±0.30 | 13.5±0.50 | 8.6±0.20 | 24.1±0.30 | |
