Description
Introduction
They are wuound directly on cores or using bobbins. Winding coils on core maks magentic field for sensor application.
Features

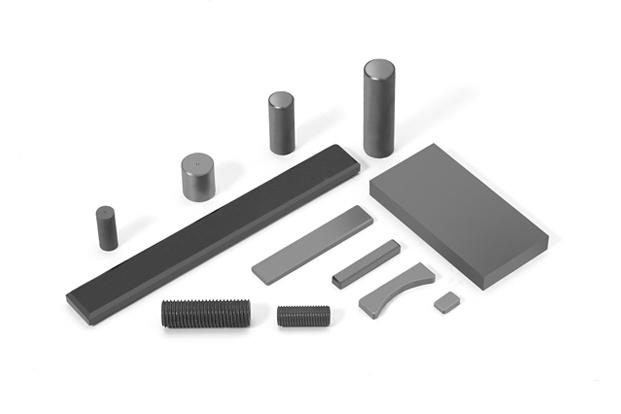

Rectangler and cylindrical types are manly used. Screw types is easy to control the characteristics by adjusting.
Applications
They are used for smart key and censors.
| Part No. | Type | Dimensions in mm | |
| A | B | ||
| AR2.5×16 | AR | 2.45+0.10/-0.15 | 16.00±0.30 |
| AR3×10 | AR | 3.00±0.20 | 10.00±0.30 |
| AR3×17 | AR | 2.90+0.10/-0.20 | 17.00±0.30 |
| AR4×20 | AR | 4.00+0.00/-0.30 | 20.00±0.50 |
| AR6×30 | AR | 6.00+0.00/-0.30 | 30.00±0.30 |
| AR8×15 | AR | 8.00±0.20 | 15.00±0.20 |
| AR3×25 | AR | 3.00+0/-0.05 | 25.00+0/-1.00 |
| AR3.5×15 | AR | 3.00+0/-0.25 | 15.00+0/-0.80 |
| AR4×12.5 | AR | 4.00+15/-0.25 | 12.50±0.25 |
| AR4×15 | AR | 4.00+15/-0.25 | 15.00±0.25 |
| AR4×17.5 | AR | 4.00+15/-0.25 | 17.50±0.30 |
| AR4×25 | AR | 3.80±0.20 | 25.00±0.25 |
| AR5×10.5 | AR | 5.00±0.20 | 10.50±0.25 |
| AR5×15 | AR | 5.00±0.20 | 15.00±0.20 |
| AR5×20 | AR | 5.00+0/-0.30 | 20.00±0.30 |
| AR5×25 | AR | 5.00+0/-0.30 | 25.00±0.40 |
| AR5×30 | AR | 5.00+15/-0.25 | 3.00±1.00 |
| AR5.6×14 | AR | 5.00±0.10 | 14.00±0.20 |
| AR6×10 | AR | 6.00+0/-0.30 | 10.00±0.20 |
| AR6×15 | AR | 6.00+0/-0.30 | 15.00±0.20 |
| AR6×20 | AR | 6.00+0/-0.30 | 20.00±0.30 |
| AR6×25 | AR | 6.00+0/-0.30 | 25.00±0.30 |
| AR6.5×12.4 | AR | 6.50+0/-0.20 | 12.40+0/-0.40 |
| AR7.5×20 | AR | 7.50+0/-0.50 | 20.00±0.20 |
| AR8×20 | AR | 8.00±0.20 | 20.00±0.30 |
| AR8×25 | AR | 8.00+0.10/-0.30 | 25.00±0.50 |
| AR9.4×34 | AR | 9.40+0.15/-0.25 | 34.00±0.50 |
| AR10×12 | AR | 10.00±0.30 | 12.00±0.30 |
| AR10×20 | AR | 9.80±0.30 | 20.00±0.50 |
| AR19×23 | AR | 19.30±0.50 | 23.00±0.40 |
| AR20×16.7 | AR | 20.50±0.50 | 16.70±0.40 |
| Part No. | Type | Dimensions in mm | ||
| A | B | C | ||
| AP8×10×4 | AP | 8.00±0.15 | 10.00±0.20 | 4.00±0.15 |
| AP40×8×2 | AP | 40.00±1.00 | 8.00±0.10/-0.30 | 2.00±0.10/-0.30 |
| AP41×41×9.5 | AP | 41.00±0.50 | 41.00±0.50 | 9.50±0.30 |
| AP50×30.5×12T | AP | 50.00±0.50 | 30.50±0.50 | 12±0.30 |
| AP50×31×10 | AP | 50.00±0.50 | 31.00±0.50 | 10.00±0.30 |
| AP80×12×5 | AP | 8.00+0/-1.30 | 12.00±0.25 | 5.00+0/-0.50 |
| AP100×12×5 | AP | 100.00+0/-1.50 | 12.00±0.30 | 5.00+0/-0.50 |
| AP160×20×4 | AP | 160.00±2.00 | 19.50±0.50 | 4.00+0/-0.50 |
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | ||||
| I4316S | I | 16.00+0.15/-0.25 | 4.00±0.15 | 3.00±0.15 | ||
| I4324S | I | 23.50±0.30/-0.20 | 4.00±0.20 | 3.00±0.20 | ||
| I4335S | I | 35.20±0.20 | 4.00±0.20 | 2.50±0.20 | ||
| I4416S | I | 16.00+0.15/-0.25 | 4.00±0.20 | 4.00±0.20 | ||
| I4430L | I | 30.20±0.20 | 4.00±0.20 | 4.00±0.20 | ||
| I4430S | I | 30.00±0.30 | 4.00±0.20 | 4.00±0.20 | ||
| I93 | I | 93.00±1.80 | 27.50±0.50 | 30.00±0.60 | ||
| I100*25*25A | I | 101.60±2.00 | 25.40±0.80 | 25.40±0.80 | ||
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | ||||
| SD50*12*3T | SD | 50.00±0.4 | 12.00±0.15 | 3.00±0.06 | ||
| SD53*12*3T | SD | 53.00±0.4 | 12.00±0.15 | 3.00+0.50/-0.10 | ||
| SD60*6*2T | SD | 60.00+0.0/-0.40 | 6.00±0.15 | 2.00±0.10 | ||
| SD60*15*5T | SD | 60.00±0.7 | 15.00±0.3 | 5.00+0.10/-0.20 | ||
| SD60*20*4T | SD | 60.00±0.7 | 20.00±0.3 | 4.00±0.15 | ||
| SD80*15*5T | SD | 80.00±0.7 | 15.00±0.3 | 5.00+0.10/-0.20 | ||
| SD100*16*9 | SD | 101.00+0.50/-0.20 | 16.00±0.30 | 9.00±0.30 | ||
| SD100*25*4.5 | SD | 100.00+0.50/-0.20 | 25.00±0.30 | 4.50±0.30 | ||
| SD100*25*5T | SD | 100.00±1.00 | 25.00±0.30 | 5.00±0.30 | ||
| SD100*25*8T | SD | 100.00±1.00 | 25.00±0.30 | 8.00±0.30 | ||
| SD105*15*5T | SD | 105.00±0.8 | 15.00±0.2 | 5.00±0.2 | ||
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | D | E | ||
| OS5.75×15-2.6HH P1.0 | OS | 5.75±0.03 | 15.00±0.30 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS5.8×10-2.6HH P1.0 | OS | 5.80±0.03 | 10.00±0.30 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS6×10-2.6HH P0.75 | OS | 6.00±0.03 | 10.00±0.50 | 2.60+0.15/-0.05 | 3.00 ref. | 0.75±0.03 |
| OS6×10-2.6HH P1.0 | OS | 6.00±0.03 | 10.00±0.50 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS6×15-2.6HH P1.0 | OS | 6.00±0.03 | 15.00±0.60 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS6×15-2.6HH P0.75 | OS | 6.00±0.03 | 15.00±0.25 | 2.60+0.15/-0.05 | 3.00 ref. | 0.75±0.03 |
