Description
Introduction

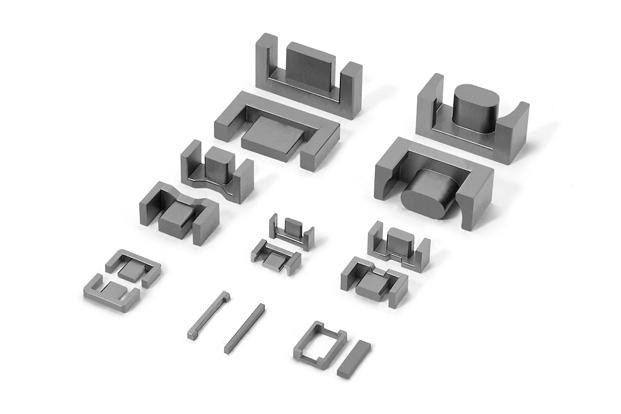

This shape gives very strong benefit when required height limit and power density. The most ideal shape for this requirement among ferrite cores.
Features
Comparing to other E shapes, its center leg is designed low and wide so that it obtain same volume but extreamly lower thickness.
Applications
It is sutable for low limit application such as LCD, LED divice.
| Part No. | Type | Dimensions in mm | ||||||
| A | B | C1 | C2 | D | E | F | ||
| EFD1322N | EFD-ⓐ | 13.4±0.30 | 11.2±0.15 | 4.5±0.15 | 3±0.10 | 9.8±0.20 | 5.3±0.15 | 8.6±0.15 |
| EFD1515S | EFD-ⓑ | 15.00±0.40 | 7.50±0.15 | 7.50±0.15 | 2.40±0.10 | 11.00±0.35 | 5.30±0.15 | 5.50±0.25 |
| EFD1618S | EFD-ⓐ | 16.40±0.30 | 9.00±0.20 | 4.50±0.15 | 2.35±0.10 | 12.60 min. | 6.70±0.15 | 7.30±0.20 |
| EFD1715S | EFD-ⓐ | 16.90±0.30 | 7.45±0.20 | 5.50±0.20 | 2.90±0.10 | 12.80 min. | 7.30±0.15 | 5.45±0.15 |
| EFD1820S | EFD-ⓐ | 17.70±0.30 | 10.10±0.20 | 5.60±0.15 | 3.40±0.10 | 13.10 min. | 7.50±0.15 | 7.80±0.20 |
| EFD1822S | EFD-ⓐ | 17.70±0.30 | 10.90±0.20 | 5.60±0.15 | 3.40±0.10 | 13.10 min. | 7.50±0.15 | 8.60±0.20 |
| EFD2020S | EFD-ⓑ | 20.00±0.55 | 10.00±0.15 | 6.65±0.15 | 3.60±0.15 | 15.40±0.50 | 8.90±0.20 | 7.70±0.20 |
| EFD2023S | EFD-ⓐ | 20.00±0.55 | 11.50±0.15 | 6.65±0.15 | 3.60±0.15 | 15.40±0.50 | 8.90±0.20 | 9.20±0.20 |
| EFD2025N | EFD-ⓐ | 20.30±0.35 | 12.75±0.25 | 6.65+0.20/-0.15 | 3.60+0.20 /-0.15 |
15.70±0.30 | 8.90±0.20 | 10.45±0.20 |
| EFD2025S | EFD-ⓐ | 20.00±0.55 | 12.50±0.20 | 6.65±0.15 | 3.60±0.15 | 15.40±0.50 | 8.90±0.20 | 10.20±0.20 |
| EFD2027S | EFD-ⓐ | 20.30±0.35 | 13.50±0.25 | 5.60±0.20 | 3.40±0.20 | 14.30±0.30 | 8.90±0.20 | 10.45±0.20 |
| EFD2120S | EFD-ⓑ | 20.5±0.55 | 10±0.15 | 6.65±0.15 | 3.6±0.15 | 15.9±0.30 | 8.9±0.15 | 7.7±0.20 |
| EFD2124N | EFD-ⓐ | 21.2±0.40 | 11.8±0.20 | 5.9±0.15 | 3.3±0.10 | 15.8 min. | 9.4±0.20 | 9.1±0.20 |
| EFD2125S | EFD-ⓑ | 20.5±0.35 | 12.75±0.20 | 6.65±0.15 | 3.6±0.15 | 15.9+0.30/-0.25 | 8.9±0.15 | 10.45±0.20 |
| EFD2126N | EFD-ⓐ | 21.2±0.40 | 13.1±0.20 | 5.9±0.15 | 3.3±0.10 | 15.8 min. | 9.4+0.15/-0.25 | 10.4±0.20 |
| EFD2520S | EFD-ⓑ | 25.4±0.40 | 10.5±0.20 | 11±0.20 | 6.6±0.15 | 19±0.40 | 6.6±0.15 | 7±0.15 |
| EFD2525S | EFD-ⓑ | 25.00±0.65 | 12.50±0.15 | 9.10±0.20 | 5.20±0.15 | 18.70±0.60 | 11.40±0.20 | 9.30±0.25 |
| EFD2525V | EFD-ⓐ | 25.05±0.75 | 12.60±0.20 | 12.45±0.25 | 8.30±0.30 | 19.20±0.40 | 8.80±0.25 | 9.55±0.25 |
| EFD2625S | EFD-ⓐ | 26.00±0.55 | 12.60±0.15 | 9.10±0.20 | 5.20±0.15 | 19.40±0.50 | 11.40±0.20 | 9.30±0.25 |
| EFD3030N | EFD-ⓑ | 30.90±0.80 | 15.3±0.20 | 9.1±0.20 | 4.9±0.15 | 23.3±0.50 | 14.6±0.25 | 11.5±0.30 |
| EFD3030S | EFD-ⓑ | 30.00±0.80 | 15.00±0.15 | 9.10±0.25 | 4.90±0.15 | 22.40±0.75 | 14.60±0.25 | 11.20±0.30 |
| EFD3032S | EFD-ⓑ | 30±0.80 | 16±0.15 | 9.1±0.20 | 4.9±0.15 | 22.4±0.75 | 14.6±0.25 | 12.2±0.30 |
| EFD3033V | EFD-ⓑ | 29.70±0.80 | 16.40±0.30 | 12.50±0.40 | 8.20±0.30 | 22.10±0.50 | 11.60±0.30 | 11.90±0.30 |
| EFD3130D | EFD-ⓑ | 30.9±0.80 | 15±0.20 | 9.1±0.20 | 4.9±0.15 | 23.9±0.50 | 14.6±0.25 | 11.2±0.30 |
| EFD3130S | EFD-ⓑ | 30.90±0.80 | 15.00±0.15 | 9.10±0.25 | 4.90±0.15 | 23.30±0.50 | 14.60±0.25 | 11.20±0.30 |
| EFD3133V | EFD-ⓑ | 31.7±0.60 | 16.8±0.30 | 12.5±0.40 | 8.2±0.30 | 24.1±0.50 | 11.6±0.30 | 12.3±0.30 |
| EFD4351S | EFD-ⓐ | 43+0.40 /-0.50 |
26.3±0.15 | 6.7±0.15 | 4.4±0.15 | 28.1±0.50 | 21.6±0.30 | 18.5±0.15 |
| EFD4549S | EFD-ⓐ | 45.20±0.50 | 24.50±0.20 | 5.90±0.25 | 3.00±0.20 | 33.30±0.50 | 24.00±0.30 | 17.80±0.20 |
| EFD5050S | EFD-ⓐ | 50.00±0.50 | 25.00±0.30 | 10.00±0.30 | 6.00±0.20 | 35.00 min. | 23.00±0.30 | 17.00±0.30 |
| Part No. | Type | Dimensions in mm | |||||||
| A | B | C1 | C2 | D1 | D2 | E | F | ||
| EPC1313S | EPC-ⓐ | 13.30±0.30 | 6.60±0.20 | 4.60±0.15 | 2.05±0.10 | 10.50 min. | 8.30 min. | 5.60±0.15 | 4.50±0.20 |
| EPC1715N | EPC-ⓐ | 17.60±0.40 | 7.60±0.20 | 6.00±0.15 | 2.80±0.10 | 14.30 min. | 12.00±0.50 | 7.70±0.15 | 5.40±0.20 |
| EPC1717S | EPC-ⓐ | 17.60±0.40 | 8.55±0.20 | 6.00±0.15 | 2.80±0.10 | 14.30 min. | 12.00±0.50 | 7.70±0.15 | 6.05±0.20 |
| EPC1720SH | EPC-ⓐ | 16.85±0.35 | 9.85±0.15 | 4.00±0.20 | 2.60±0.15 | 13.80±0.30 | 12.40±0.30 | 8.20±0.20 | 7.35±0.15 |
| EPC1826W | EPC-ⓐ | 18.50±0.30 | 13.20±0.15 | 4.25±0.15 | 2.75±0.15 | 13.10 min. | 10.70 min. | 9.10±0.15 | 10.30±0.15 |
| EPC1920N | EPC-ⓐ | 19.60±0.50 | 9.75±0.20 | 6.00±0.20 | 2.40±0.15 | 16.40±0.50 | 13.40±0.50 | 8.30±0.20 | 7.25±0.20 |
| EPC1920S | EPC-ⓐ | 19.10±0.50 | 9.75±0.20 | 6.00±0.15 | 2.50±0.10 | 15.80 min. | 13.60±0.50 | 8.50±0.15 | 7.25±0.20 |
| EPC2228S | EPC-ⓐ | 21.90±0.30 | 14.20±0.20 | 7.30±0.20 | 4.15±0.15 | 16.90±0.20 | 14.80 min. | 9.50±0.15 | 11.55±0.15 |
| EPC2525S | EPC-ⓐ | 25.10±0.50 | 12.50±0.20 | 8.00±0.20 | 4.00±0.10 | 20.65 min. | 17.50±0.50 | 11.50±0.20 | 9.00±0.30 |
| EPC2732S | EPC-ⓐ | 27.10±0.50 | 16.00±0.20 | 8.00±0.20 | 4.00±0.10 | 21.60 min. | 19.00±0.50 | 13.00±0.30 | 12.00±0.30 |
| EPC3035S | EPC-ⓐ | 13.10±0.50 | 17.50±0.20 | 8.00±0.20 | 4.00±0.10 | 23.60 min. | 20.00±0.50 | 15.00±0.30 | 13.00±0.30 |
| EPC4643S | EPC-ⓐ | 46±0.70 | 21.9±0.20 | 19.5±0.30 | 12±0.25 | 36.4±0.60 | 29±0.60 | 21±0.30 | 15.5±0.25 |
| EPC4649S | EPC-ⓐ | 46±0.70 | 24.7±0.20 | 19.5±0.30 | 12±0.25 | 36.4±0.60 | 29±0.60 | 21±0.30 | 18.3±0.25 |
| EPC5050S | EPC-ⓑ | 50.05±0.70 | 25.60±0.30 | 9.00±0.30 | 5.00±0.10 | 38.00±0.70 | 23.50±0.40 | 18.50±0.30 | |
| EPC5055S | EPC-ⓑ | 50.05±0.70 | 27.60±0.30 | 9.00±0.30 | 5.00±0.10 | 38.00±0.70 | 23.50±0.40 | 20.50±0.30 | |
