Description
Introduction

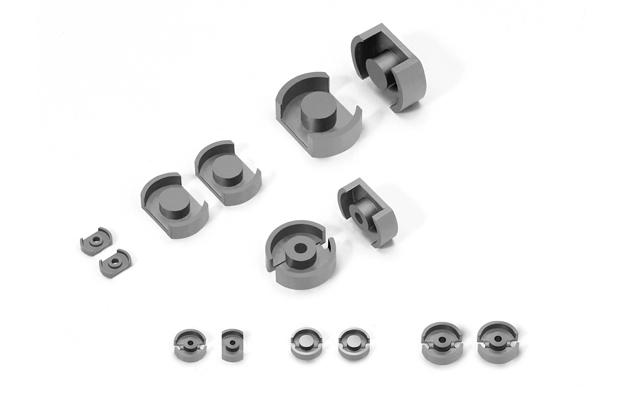

Outer wall is perfectly surrounding center leg which wound coils. It means perfect shielding for lekage inductace is available.
Features
Generally they are used by pair for perfect shielding,but also used for one piece of POT core for approximate switch. For easy coil insertion, DS and RS types are developed and under mass production.
Applications
It is sutable for telecommunication application and adopters.
| Part No. | Type | Dimensions in mm | ||||||
| A | B | C | D1 | D2 | E | F | ||
| DS3019D | DS | 20.00±0.50 | 9.40±0.15 | 20.30±0.30 | 25.40±0.40 | 17.80 min. | 13.30±0.20 | 6.60±0.15 |
| DS3119W | DS | 31.20±0.30 | 9.45±0.15 | 20.30±0.30 | 25.40±0.35 | 13.20±0.15 | 6.45±0.20 | |
| DS3314W | DS | 33.20±0.50 | 7.10±0.15 | 23.70±0.30 | 26.60±0.40 | 17.80 min. | 13.50±0.20 | 4.30±0.15 |
| DS3319D | DS | 33.20±0.50 | 9.40±0.15 | 23.70±0.30 | 26.60±0.40 | 17.80 min. | 13.50±0.20 | 6.50±0.15 |
| DS3324 | DS | 33.20±0.50 | 12.05±0.15 | 23.70±0.30 | 26.60±0.40 | 17.80 min. | 13.50±0.20 | 9.25±0.15 |
| DS4020 | DS | 39.8±0.50 | 10.1+0.20/-0.10 | 28.3±0.35 | 33.2±0.50 | 20.00 min. | 16±0.25 | 6.5+0.20 /-0.10 |
| DS4020D | DS | 40.2±0.50 | 10.1+0.20/-0.10 | 28.3±0.35 | 33.6±0.50 | 20.00 min. | 16±0.25 | 6.5+0.20 /-0.10 |
| DS4025D | DS | 40.2±0.50 | 12.65±0.20 | 28.3±0.35 | 33.6±0.50 | 20.00 min. | 16±0.25 | 9.05±0.20 |
| DS4025W | DS | 39.8±0.50 | 12.8±0.20 | 28.3±0.35 | 33.2±0.50 | 20.00 min. | 16±0.25 | 9.2±0.20 |
| DS4026 | DS | 39.80±0.50 | 13.50±0.20 | 28.30±0.35 | 33.20±0.50 | 20.00 min. | 16.00±0.25 | 9.90±0.20 |
| DS4028 | DS | 39.80±0.50 | 14.00±0.20 | 28.30±0.35 | 33.20±0.50 | 20.00 min. | 16.00±0.25 | 10.40±0.20 |
| DS4030 | DS | 39.80±0.50 | 15.10±0.20 | 28.30±0.35 | 33.20±0.50 | 20.00 min. | 16.00±0.25 | 11.50±0.20 |
| Part No. | Type | Dimensions in mm | ||||||
| A | B | C | D | E | F | H | ||
| PC0506S | PC-ⓑ | 5.35±0.15 | 3.20±0.10 | 3.05±0.15 | 4.25±0.15 | 1.90±0.10 | 2.50±0.10 | |
| PC0909S | PC-ⓑ | 8.70±0.20 | 4.50±0.10 | 4.15+0/-0.25 | 7.20±0.20 | 2.70±0.10 | 3.40±0.10 | |
| PC1408H | PC-ⓐ | 14.00±0.25 | 4.18±0.10 | 9.40 ref. | 11.85±0.25 | 5.85±0.45 | 2.90±0.15 | 3.10±0.15 |
| PC1811A | PC-ⓐ | 17.90±0.30 | 5.30±0.10 | 10.40 ref. | 15.10±0.25 | 7.40±0.15 | 3.70±0.10 | 3.10±0.10 |
| PC2213H | PC-ⓐ | 21.60±0.30 | 6.70±0.10 | 15.00 ref. | 18.20±0.25 | 9.25±0.15 | 4.70±0.10 | 4.55±0.15 |
| PC2417H | PC-ⓐ | 24.30±0.45 | 8.68±0.15 | 17.00±0.35 | 21.00±0.30 | 11.00±0.15 | 6.10±0.15 | 5.40±0.15 |
| PC2616H | PC-ⓐ | 25.50±0.50 | 8.05±0.225 | 18.00±0.35 | 21.60±0.50 | 11.30±0.30 | 5.65±0.20 | 5.50±0.20 |
| PC3019H | PC-ⓐ | 30.00±0.50 | 9.40±0.10 | 21.50 ref. | 25.40±0.40 | 13.30±0.20 | 6.60±0.10 | 5.55±0.10 |
