  • SAMWHA DSP

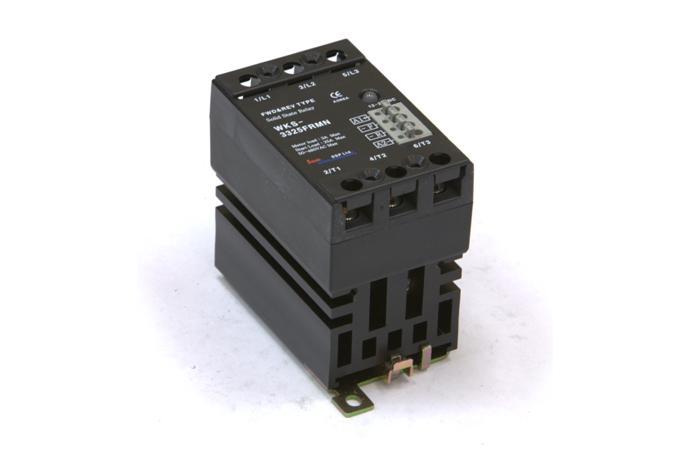

    Motor Only (AC Motor Forward-Reverse type/DC Input)
    Model
    WKS-3325FRMN
    Series
    Wonder S.S.R

    Product Description

     ◆ Reverses rotation of three-phase motors (380~440V)
     ◆ Complete, compact units
     ◆ Tailor-made solution to current sinks
     ◆ DIN rail and panel mounting
     ◆ Currents below 3A(Triac)
     ◆ Regulated input DC from 12 to 24V
     ◆ Protection by RC filter
     ◆ Self-protection for overvoltage
     ◆ Optional protection by removable varistor
     ◆ Direction of rotation displayed by 2 colors(red,green) LEDs
     ◆ Application : Heater & Load Control
     ◆ Interlock against simultaneous actuation in both directions



    SamWha DSP Motor Only (AC Motor Forward-Reverse type/DC Input) WKS-3325FRMN

    SamWha DSP Motor Only (AC Motor Forward-Reverse type/DC Input) WKS-3325FRMN 1

    SamWha DSP Motor Only (AC Motor Forward-Reverse type/DC Input) WKS-3325FRMN 2
