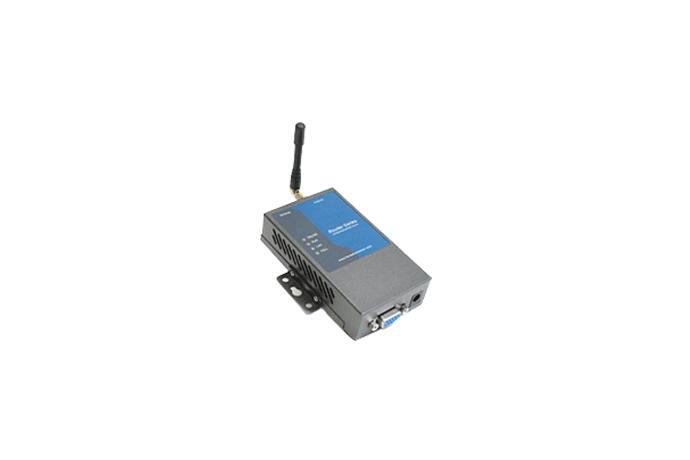

Communication GPRS Router/CDMA Router
Model
Series
Gaming Terminal
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
Specification
| GPRS Router | CDMA Router | |
| Compatible Mobile Networks | GPRS CLASS10, CS1-CS4, SMG31bits standard |
CDMA 1x |
| Cellular Frequency | GSM850/900/1800/1900MHz | CDMA 1X 800 Mhz/450Mhz; |
| Bandwidth | Uplink 42.8Kbps Downlink 85.6kbps | Uplink 153.6Kbps Downlink 153.6kbps |
| Interface | 10/100Base-Tx Ethernet (RJ45) | 10/100Base-Tx Ethernet (RJ45) |
| Protocol | TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, SNMP | TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, SNMP |
| Antenna | 50ohm SMA female | 50ohm SMA female |
| LED | CELL, RUN, ONLINE, LAN | CELL, RUN, ONLINE, LAN |
| Power Supply | DC 5-25V, typical 12V/1A | DC 5-25V, typical 9V/1A |
| Power Consumption | 130mA@12VDC (Average) | 30mA@9VDC (Average) |
| Software | Local/ Remote firmware Upgrade WEB console, SYSLOG | Local/ Remote firmware WEB console, SYSLOG |
| Dimensions(WxDxH) | 100mm x 60mm x 20mm | 100mm x 60mm x 20mm |
| Weight | 300g | 300g |
