Samil Transformer

Samil Transformer

KEPCO (Standard pad_mount)

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

(Three phase 22.9kV(Y) / 400-230V)

Capacity
(kVA)
η
(%)
ε
(%)
Io
(%)

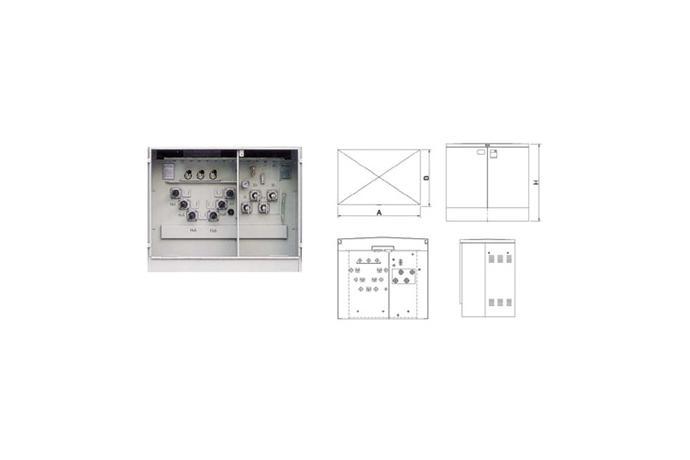

Dimensions(mm) Oil(ℓ) Total W.T
(kg)
A B H
75 97.9 1.8 1.7 1500 1000 1400 380 1250
150 98.1 1.7 1.6 1500 1000 1400 480 1550
300 98.4 1.5 1.0 1500 1250 1400 560 2100
500 98.6 1.4 0.8 1500 1500 1400 660 2650



(Three phase 22.9kV(Y) / 130kV-230V)

Capacity
(kVA)
η
(%)
ε
(%)
Io
(%)
Dimensions(mm) Oil(ℓ) Total W.T
(kg)
A B H
50 98.8 1.5 0.8 1000 1000 950 190 680
100 98.4 1.5 0.7 1000 1000 950 190 860
200 98.6 1.4 0.6 1000 1400 1150 360 1350
