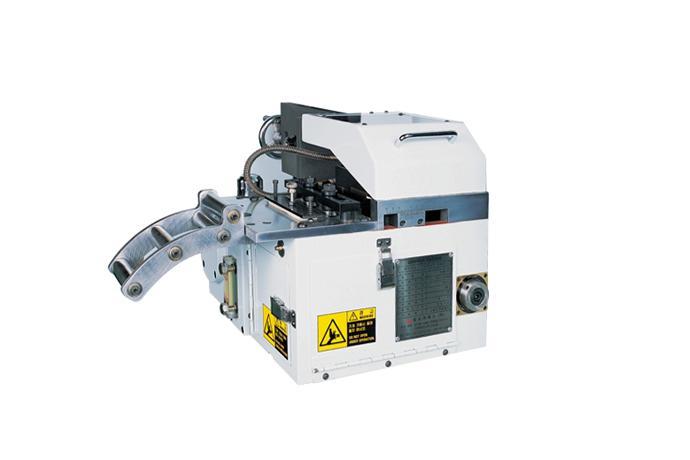

The characteristics of Feeder
- Prevents the material damage during the feeding by controlling air pressure
- Prevents slipping with upper-lower pressure type feeding mechanism including 2cams
- High speed working, Feeding accuracy (±0.01mm)
- Simple attachent with timing-belt driving method Simple adjustment with handle and scale
Feeder SDGF Specification
| Item/model | unit | SDGF-9060 | SDGF-9060S | SDGF-2015 | |||
|---|---|---|---|---|---|---|---|
| Material Width | mm | 0 ~ 90 | 0 ~ 90 | 0 ~ 200 | |||
| Materia Thickness | mm | 0.1 ~ 1.5 | 0.1 ~ 1.5 | 0.1 ~ 2.0 (max 2.5) | |||
| Feed Length | mm | 0 ~ 60 | 0 ~ 60 | 0 ~ 150 | |||
| Feed Angle | °(deg) | 180° | 164° | 180° | |||
| Installation Position | mm | Left | |||||
| Feed Direction | mm | LEFT → RIGHT | |||||
| Pass Line Height | mm | 60 ~ 120 | 60 ~ 120 | 80 ~ 160 | |||
