SAMDO PRESS

SAMDO PRESS

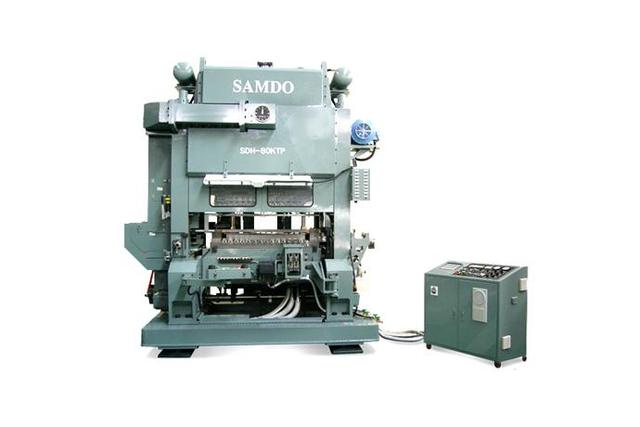

Double Crank High Speed Press

Model

Series

Standard Press


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

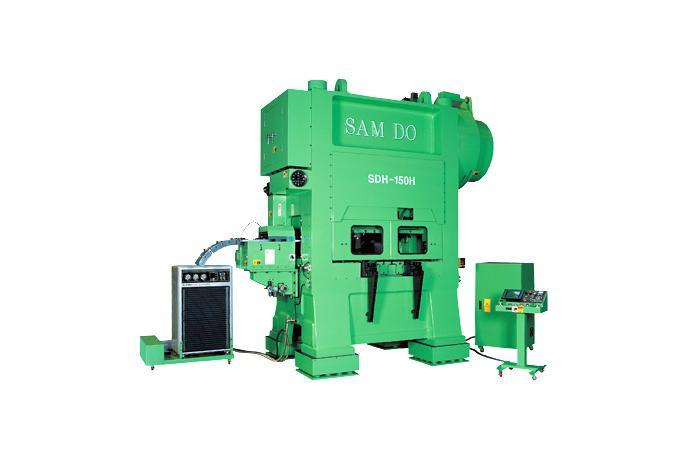

SDH-H SERIES

- The frame is designed with computer simulation and it allows to high precision, super strength, high efficiency of machine
- Double crank of special steel
- Since crank and balance weight is designed from dynamic balance analysis, vibration, noise are minimized during high speed operation
- Specially accurate liner bearing is adopted in 8 side slide guide to maintain high precision during side up-down

SDH-H Specification

Item/ModelunitSDH-150HSSDH-250HSDH-300HSDH-400H
Capacity Ton150250300400
Stroke Length mm50608050801005080100304050
S. P. M S. P. M80~60~60~100~
200180150150130120140120100250180120
Die Height mm385380370450435425425410400450445440
Slide Adjustment mm50100100100
Slide Arda mm1350×8001680×7101810×8502000×00
Bolster Area mm1400×8501700×9501860×9502000×1000
Bolster Thickness mm200210200250
Bed Opening mm1100×2001500×3001500×3001500×300
Main Motor kW×p30×637×437×455×4
Slide Adjust Motor w×p2.2×42.2×42.2×42.2×4
Air Pressure kgf/㎠5
Weight(Approx.) mm28424345
