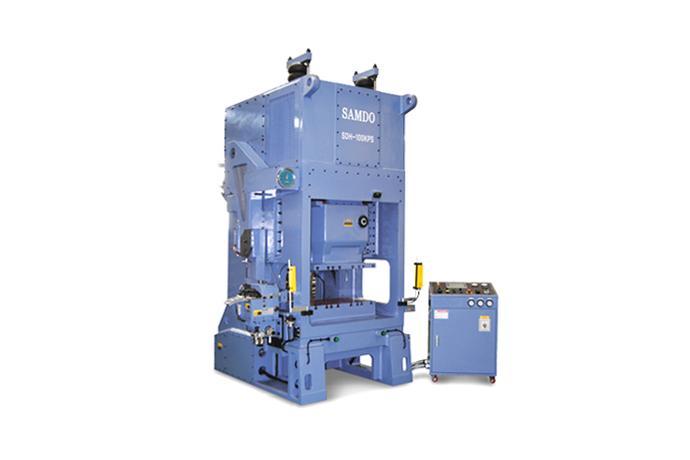

product Image

TOP

High Speed Precision Press
Model Name
SDH-KP
Series
Accuracy Press
Data
-
Manufacturer information
provider logo
SAMDO PRESSPress machine manufacturer, High speed press, Transfer press, Knuckle press, Feeder, Machine tools, Gripper and more
Problem with product info?
Update request
Manufacturer
SAMDO PRESS
Brand
-
SKU
7652
Product Name
High Speed Precision Press
Model Name
SDH-KP, SDH-15KP, SDH-60KP, SDH-100KP
Size
-
Weight
-
Product Details

SDH-KP SERIES

  • 1500SPM high speed knuckle press
    - The structure design realized optimum balance
  • Stroke-variable type press
    - Stroke can be adjusted dependent on use or purpose
  • High degree of precision
    - Adopted bearing with high hardness and high degree of precision
    - Improved degree of precision by applying linear bearing on slide guide Decreased noise and extended mold life
  • Decreased noise and extended mold life
    - - Decreasing speed at molding section reduced noise and extended mold life
  • Improved degree of precision and reinforced frame hardness by double knuckle structure made of H-type casting frame
  • Minimized cumulative gap at slide driving part by applying hydraulic pressure screw type



SDH-KP Specification

model Item unit SDH-15 KP SDH-60 KP SDH-100 KP
Capacity Ton 15 60 100
Stroke mm 15~25 30 80 50
Stroke Per Minute S.P.M 300 ~ 100 ~ 90 ~ 50 ~
1500 350 120 100
Die Height mm 210 310 285 320
Slide Adjustment mm 20 50 50
Slide Area mm 340x300 520x310 850x550
Bolster Area mm 400x370 860x520 900x500
