SAMDO PRESS

SAMDO PRESS

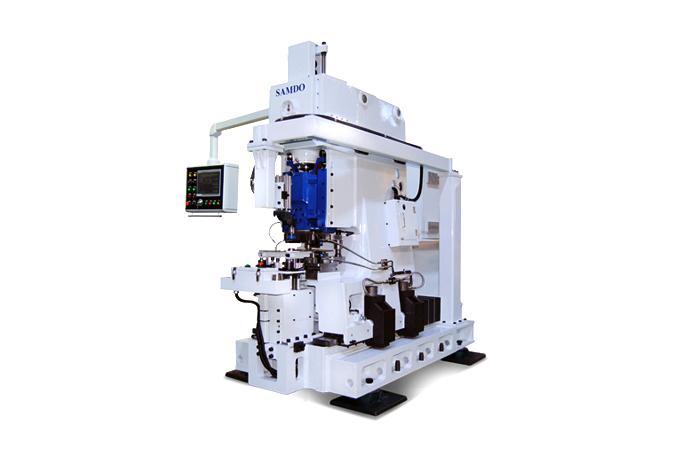

Notching Servo Press

Model

Series

Servo Press


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

The characteristics of SDH-NP Seires

- Applied slide guide precision linear bearing
- Balance-keeping technology during high speed operation
- Technology in applying high load, high degree of precision bearing on crank axis
- High hardness frame manufacturing technology
- Large frame facility manufacturing technology


SDH-NP Seires Specification

   Item unitSpecification
CapacityTon5 (50kN)10 (100kN)
Rating Pointmm11.5
Stroke Lengthmm2020
Stroke Per MinuteS.P.M200 ~ 1000200 ~ 600
Die Heightmm275 ~ 285310 ~ 335
Slide Adjustmentmm1025
Slide Areamm200 x 155130 x 190
Bolster Areamm460 x 260580 x 260
Frame Movement Length (Y-axis)mm160510
Punching Distancemm80 ~ 240150 ~ 660
Index Movement°~ 360°~ 360°
Number of index-4 ~ 2004 ~ 200
Main MotorkW7.5kW (2000rpm)11kW (1500rpm)
Frame Y-axis MotorkW0.9kW (1500rpm)0.9kW (1500rpm)
Index Table MotorkW5kW (3000rpm)7.5kW (3000rpm)
Skip MotorOPTIONOPTION3.5kW (3000rpm)
Skew MotorOPTIONOPTION0.6kW (1000rpm)
