SAMDO PRESS

SAMDO PRESS

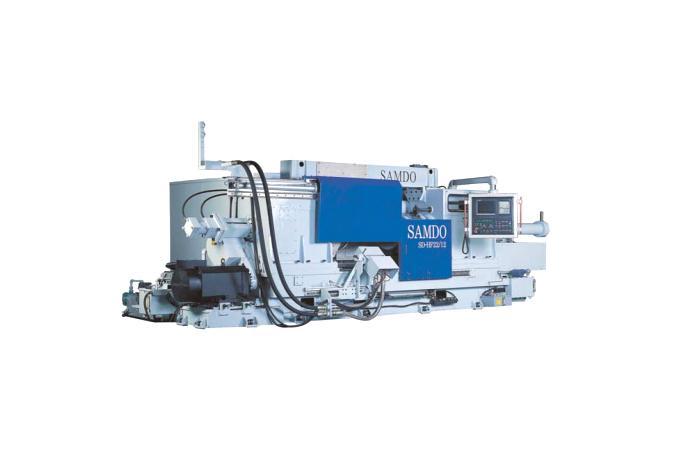

Horizontal 1 Axis Flow Forming Machine

Model

Series

Flowing Forming Machine


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

The effect of the Flow Forming Processing

  • The light-weight of wheels

    -Improve the mileage

    -Improve the performance of covering

    -Improve the heat-resistant while braking

  • Bigger of wheels

    -Improve safety and reliability of cars

    -Improve the engine horsepower

    -Improve the technology of SUV (sport-utility vehicle)



HF 22/12 Specification

ItemUnitSD-HF22/12
Application - 2-Piece Aluminium Wheel
Casting Aluminium Wheel
Forged 1 Piece Aluminium Wheel
Forged 2 Piece Aluminium Wheel
Blank Diameter Inch 14 ~ 22
Product O.D mm Ø 355 ~ 630
Blank Width Inch 5 ~ 12
Maximem Speed rpm 800
Stroke and Thrust of Roller X axis mm x kN 400 x 165.5
Stroke and Thrust of Roller Z axis mm x kN 480 x 165.5
Stroke and Thrust of Tail Stock mm x kN 700 x 197
Motor Capacity for Spindle kN 55 / 45
Motor Capacity for Hydraulic kN 30
Dimension of the Machine mm x mm about 3200 x 6500
Machine Weight kg about 17,000kg
