SAMDO PRESS

SAMDO PRESS

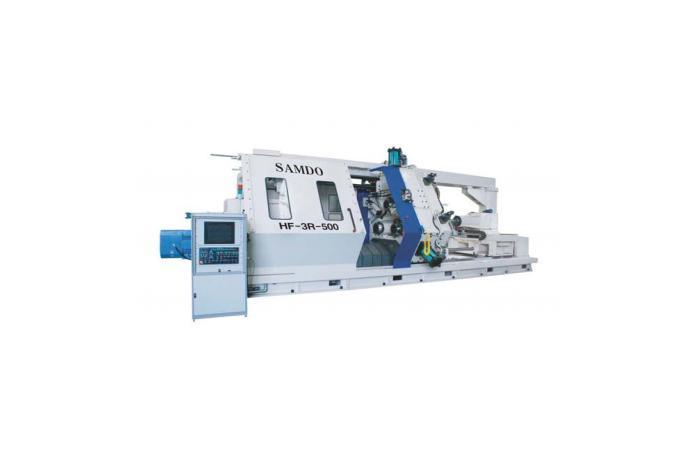

Horizontal 3 Axis Flow Forming Machine

Model

Series

Flowing Forming Machine


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Structural Feature

- Minimize the deformation by lower frame, upper fixed beam and up/down Saddle fix structure
- Keep high load and high speed response capacity through control of 3 axis rollers
- Maintain high torque by 2 Driving Motor application on Main Shaft / Tailstock
- Minimize the deformation by closed H-shaped frame to support the 3 processing roller
- Maintain rigidity of upper/lower forming loads by applying a square guide
- Apply six-side type linear bearing, maintain high abrasion resistant and realize the accuracy
- Attach hydraulic motor on 3 axis forming roller, improve the products forming condition
- Apply high load/precise bearing and circulating lubrication system of 3 axis forming roller in order to improve durability
- Apply main shaft/tailstock spindle DIN55027, SIZE 15, Minimize the deformation under forming loaded over 120 tons



Layout Composition

- IN/OUT Composition is available by using 2 doors, or 1
- Minimum space for the machine : 4m x 4m x 5m (Height)
- 22" Production time : About 50 sec



SAMDO PRESS Horizontal 2 Axis Flow Forming Machine HF 3R 500
