Manufacturer
SAMCHULLY
Product Type
Machine
Brand
-
SKU
35390
Product Name
Manual Turn Table
Model Name
MUT Series
Size
-
Weight
-
Product Details

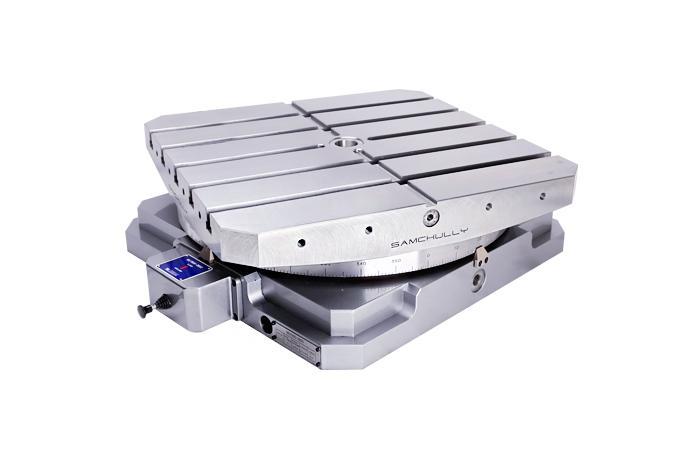

MUT series
Manual Turn Table
High Accuracy by Special Curvic Coupling
Easy to Heavy cutting and boring, Powerful clampingBody
Spec
| MUT-600 | ||||
| Table Dia. | [mm] | Ø600 | ||
| Center-Hole Dia. | [mm] | Ø40 | ||
| Rounded Corners | [mm] | Ø794 | ||
| Height | [mm] | 200 | ||
| Driving Method | Pneumatic 7kg/cm² | |||
| Allowable Work Inertia | [kgm²] | 90 | ||
| Clamp Capacity | [kgf] | 3200 | ||
| Width of T-slot | [mm] | 20H7 | ||
| Indexing Accuracy | [sec] | 6 | ||
| Min. Increment | [deg.] | 1 or 5 | ||
