Quick Jaw Change Chuck

Model Name

QJC

Series

Power Chuck

View AllView All Series

Data

QJC

Manufacturer information

SAMCHULLY

Hydraulic cylinder, Power vise, Scroll chuck, Drill, Tapping M/C, Drill chuck, Index, Rotary table and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SAMCHULLY

Product Type

Machine

Brand

SKU

35314

Product Name

Quick Jaw Change Chuck

Model Name

QJC

Size

Weight

Product Details

QJC

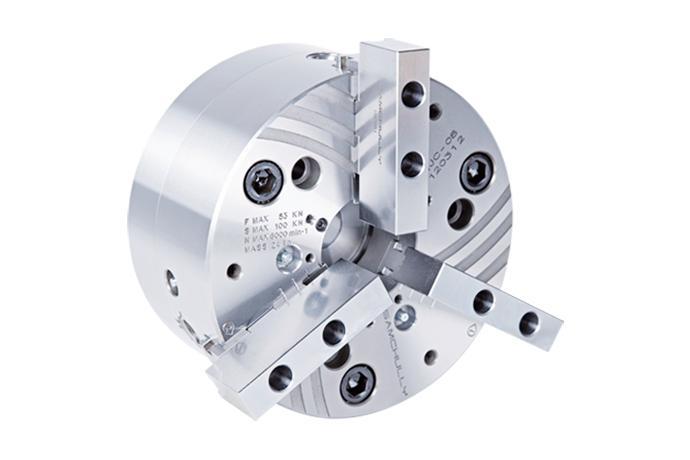

Quick Jaw Change Chuck

Minimal jaw set-up times(within 1 minute), Jaws are reversible(180º)
High repeatability when changing jaws(runout <0.02mm)
Minimum loss of gripping force because of wedge bars
The built-in safety interlock eliminates misoperation

Spec

		QJC-206	QJC-208	QJC-210	QJC-212	QJC-215	QJC-220
Jaw Stroke Dia.	[mm]	11.4	14.4	16	16	17	20
Plunger Stroke	[mm]	20	25	28	28	32	42
Pemissible Input Force	[kN(kgf)]	30(3059)	54(5404)	65(6628)	90(9177)	133(13562)	120(12236)
Plunger Stroke	[kN(kgf)]	45(4538)	100(10197)	115(11726)	160(16315)	240(24473)	250(25492)
Max. R.P.M.	[min-¹(r.p.m.)]	6000	5500	4000	3600	3500	2200
Weight	[kgf]	13	24	42	66	109	225
GD²	[N·m²(kgf·m²)]	0.11	0.11	0.41	0.97	2.3	6.5
Operating Cylinder		SH-13046	SHL-17068	SHL-19082	SHL-21010	SHL-25011	SHL-25011
