MODEL : SPS-R850
PRODUCTS KIND : LIQUID & SAUCES
SPEED : 8~20packs/min.
FILLING CAPACITY : 500g~3kg
POUCH TYPE : 3-Directional•Stand-Up•Shape Pouch,Side Spout Pouch
PACKING SIZE : (W)150~200mm, (L)180~250mm
ELECTRIC POWER : 220V/50~60Hz/1Phase/3~5kw
DIMENSION : [1kg,STD] (W)3,000×(L)1,200×(H)1,900
WEIGHT : About 800kg
COMPRESSED AIR : 5~6kg/㎠(Air Compressor-Option)

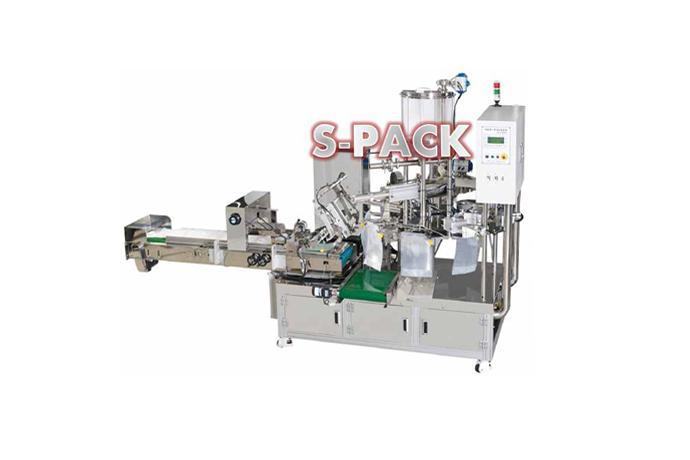

Single line rotary type liquid filling packer (Big volume type)
Applicable to stand up, flat, side spout pouch.
Since pouch feeding system is belt type, special formed pouch feeding is possible.
By using roller-drive index, precise division is possible. No vibrate and noise.
By using inverter in motor, control the various speed.
This is high quality automatic packing machine, which is all automatic system for pouch feeding, opening, fiilling,sealing, cooling, discharge.
Empty pack detection function
Error alarm message checking function
Easy to drive the controller which is consist of touch screen, button S/W.
Able to control sealing temp. depending on pack’s material
Safe from harmful germ, fungus by eliminating margin of sealing
