RUN ELECTRONICS

RUN ELECTRONICS

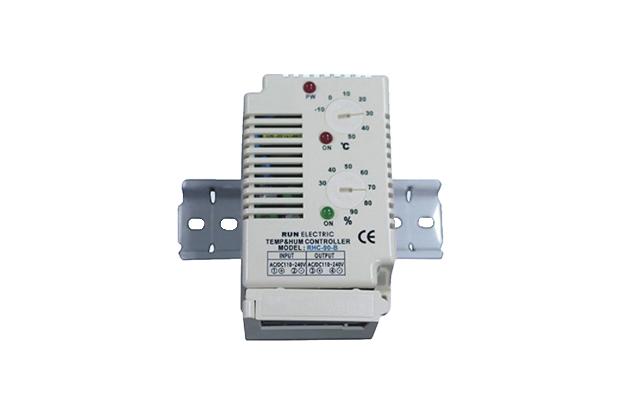

전자식 온도/습도 조절기

Model

Series

Temperature & Humidity Controller


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

Characteristic

1. It has input power lamp and output operation indicated lamp

2. Use to only auto control panel in the switch box.





Mode Width Length Height Attachment hole Input Voltage Output Voltage Rating current Temp, Hum range Temp, Hum
set error
Temp, Hum
hysteresis
Note
RHC-90B1 60 105 45 51 x 80 or 35mm
DIN rail
AC/DC 100~240V
50/60Hz
AC/DC110~240V AC250V, 5A -10~50℃
30~90%
±3℃
±7RH
3℃
3%RH




Ambient temp Relative humidity Custody temp Weight Case materials Terminal bolt Attachment bolt Terminal lug Certification
10~60℃ 30~80% RH 2VA 116g PC(Polycarbonate)
UL-94 V-0
난연성 재질
M3 x 6 M4 x 10 1.5-3Y KC, CE, RoHS

※ Use to only auto control panel in the switch box.

※ In case of using for machinery concerning injury and tremendous property damage of heavy, peripheral accessories attach & use safety device over again.
