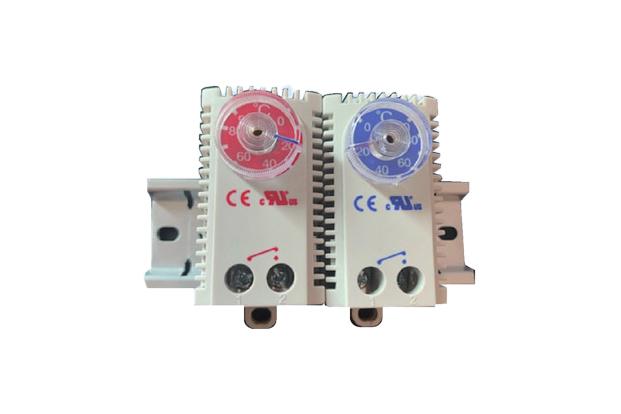

기계식 미니 자동온도조절기

Model Name

RTM-H90N

Series

Temperature & Humidity Controller

View AllView All Series

Data

도면-런전자-기계식 미니 온도 조절기-RTM-H90N, RTM-H50N, RTM-F90N, RTM-F50N

Manufacturer information

RUN ELECTRONICS

Distribution panel parts manufacturer, Temperature controller, Humidity controller, Space heater, Fan heater and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

RUN ELECTRONICS

Product Type

Machine

Brand

SKU

135403

Product Name

기계식 미니 자동온도조절기

Model Name

RTM-H90N, RTM-H50N, RTM-F90N, RTM-F50N

Size

Weight

Product Details

특징

1. 좁은 공간에서도 설치가 간편합니다.

2. 찬넬식과 볼트취부방식 겸용으로 되어 있습니다.

3. 히타용, 휀용으로 분리되어 있습니다.

Mode	Width	Length	Height	Attachment hole	Rating current	Temp range	Temp set error	Temp hysteresis	Note
RTM-H90N	33	76	41	67 or 35mm DIN rail	AC250V, 10A	0~90℃	±5℃	7℃	히타전용
RTM-H50N	33	76	41	67 or 35mm DIN rail	AC250V, 10A	-10~50℃	±5℃	7℃	히타전용
RTM-F90N	33	76	41	67 or 35mm DIN rail	AC250V, 10A	0~90℃	±5℃	7℃	휀전용
RTM-F50N	33	76	41	67 or 35mm DIN rail	AC250V, 10A	-10~50℃	±5℃	7℃	휀전용

Ambient temp	Relative humidity	Custody temp	Weight	Case materials	Terminal bolt	Attachment bolt	Terminal lug	Certification
-20~90℃	30~80% RH	-20~90℃	42g	PC(Polycarbonate) UL-94 V-2 난연성 재질	M3.5 x 8	M4 x 10	1.5-4Y	UL, CE, RoHS

※ We prefer the temp range of the control panel is -10~50℃

※ In case of using for machinery concerning injury and tremendous property damage of heavy, peripheral accessories attach & use safety device over again.
