RUN ELECTRONICS

RUN ELECTRONICS

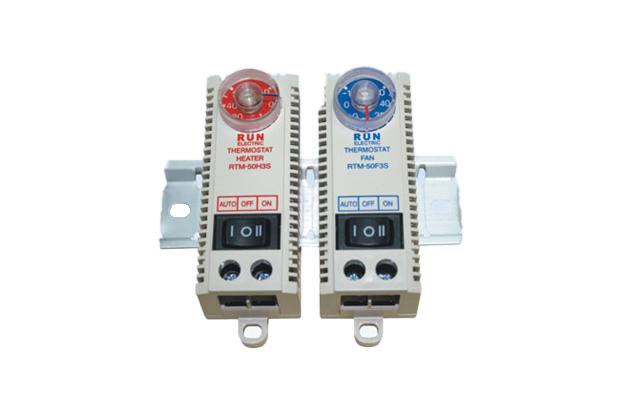

기계식 미니 자동온도조절기

Model

Series

Temperature & Humidity Controller


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description



Characteristic

1. Adhered with toggle switch for using of circuit selecting

2. We have the two type of thermostat for heater and cooling fan





Mode Width Length Height Attachment hole Rating current Temp range Temp set error Temp hysteresis Note
RTM-90H3S 33 99 41 90 or 35mm DIN rail AC250V, 5A 0~90℃ ±5℃ 7℃ Heater
RTM-50H3S 33 99 41 90 or 35mm DIN rail AC250V, 5A -10~50℃ ±5℃ 7℃
RTM-90F3S 33 99 41 90 or 35mm DIN rail AC250V, 5A 0~90℃ ±5℃ 7℃ Fan
RTM-50F3S 33 99 41 90 or 35mm DIN rail AC250V, 5A -10~50℃ ±5℃ 7℃



Ambient temp Relative humidity Custody temp Weight Case materials Terminal bolt Attachment bolt Terminal lug Certification
-20~90℃ 30~80% RH -20~90℃ 56g PC(Polycarbonate)
UL-94 V-2
난연성 재질
M3.5 x 8 M4 x 10 1.5-4Y KC

※ We prefer the temp range of the control panel is -10~50℃

※ In case of using for machinery concerning injury and tremendous property damage of heavy, peripheral accessories attach & use safety device over again.

Download

도면-런전자-기계식 미니 온도 조절기-RTM-90H3S, RTM-50H3S, RTM-90F3S, RTM-50F3S
