Description
Characteristic
1. Can be installed easily even in small space
2. Mountings are two type of bolt & channel

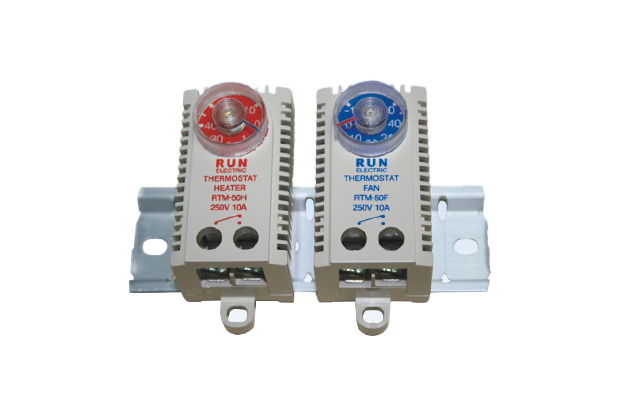

3. We have the two the type of thermostat for heater and cooling fan
Mode | Width | Length | Height | Attachment hole | Rating current | Temp range | Temp set error | Temp hysteresis | Note |
RTM-90H | 33 | 76 | 41 | 67 or 35mm DIN rail | AC250V, 10A | 0~90℃ | ±5℃ | 7℃ | Heater |
RTM-50M | 33 | 76 | 41 | 67 or 35mm DIN rail | AC250V, 10A | -10~50℃ | ±5℃ | 7℃ | |
RTM-90F | 33 | 76 | 41 | 67 or 35mm DIN rail | AC250V, 10A | 0~90℃ | ±5℃ | 7℃ | Fan |
RTM-50F | 33 | 76 | 41 | 67 or 35mm DIN rail | AC250V, 10A | -10~50℃ | ±5℃ | 7℃ |
Ambient temp | Relative humidity | Custody temp | Weight | Case materials | Terminal bolt | Attachment bolt | Terminal lug | Certification |
-20~90℃ | 30~80% RH | -20~90℃ | 42g | M3.5 x 8 | M4 x 10 | 1.5-4Y | KC, CE, RoHS |
※ We prefer the temp range of the control panel is -10~50℃
※ In case of using for machinery concerning injury and tremendous property damage of heavy, peripheral accessories attach & use safety device over again.
