RUN ELECTRONICS

RUN ELECTRONICS

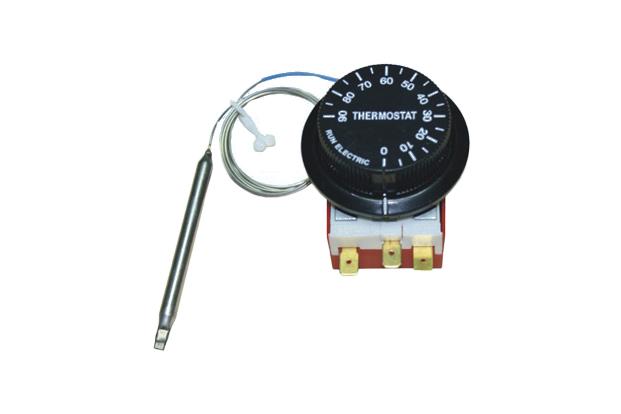

기계식 자동온도조절기

Model

Series

Temperature & Humidity Controller


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description



Characteristic

1. 산업용 냉동 · 냉장고, 제빙기, 냉온수기, 자동판매기, 전기히터, 가스오븐, 각종 산업용 · 공업용 용기





Model Width Length Height

Attachment hole

Rating current Sensor Size Temp range Temp set error Temp hysteresis Note
리드선 (L1) 감온구 (D) 센서길이 (L)
RS-30 37.5 56 30 28 AC250V, 16A 1m 109mm 30~30 ±5℃ 7℃
RS-50 37.5 56 30 28 AC250V, 16A 1m 109mm 0~50℃ ±5℃ 7℃
RS-90 37.5 56 30 28 AC250V, 16A 1m 73mm 0~90℃ ±5℃ 7℃
RS-120 37.5 56 30 28 AC250V, 16A 1m 78mm 0~120℃ ±6℃ 10℃
RS-200 37.5 56 30 28 AC250V, 16A 1m 65mm 0~200℃ ±10℃ 10℃
RS-320 37.5 56 30 28 AC250V, 16A 1m 169mm 50~320℃ ±10℃ 30℃
65mm 30℃



Ambient temp Relative humidity Custody temp Weight Case materials Attachment bolt Terminal lug Certification
-20~60℃ 30~80% RH -20~60℃ 84g ABS M4 x 8 하우징 250단자 KC

※ We prefer the temp range of the control panel is -10~50℃

※ In case of using for machinery concerning injury and tremendous property damage of heavy, peripheral accessories attach & use safety device over again.

Download

도면-런전자-기계식 자동온도조절기-RS-320, RS-120, RS-90, RS-50, RS-30
