NOW SYSTEMS

NOW SYSTEMS

Fall Type Metal Detector_QUICKER

Model

Series

METAL DETECTOR


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Information

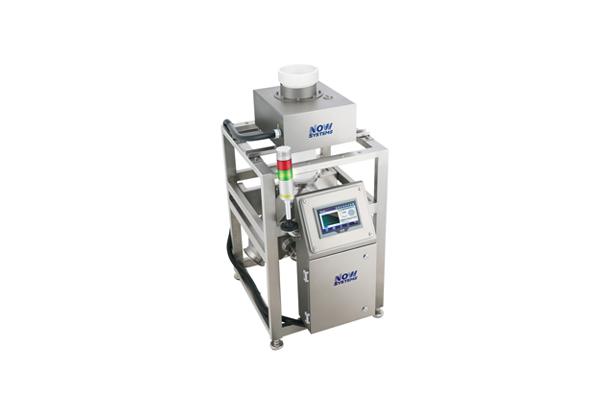

NMD530 Series (QUICKER) fall type metal detector is designed to be installed at the beginning of the production line to inspect materials in bulk powder or granule form or at any point where inspection of free falling products is necessary. Providing unrivalled levels of detection sensitivity through an array of innovative features and advantages, NMD530 Series (QUIKCER) fall type metal detector is ideal for minimized height allowing them to be installed in the often restricted space between a weigher and a bag maker.



Features

For Inspecting Powders and Fine-Grained Bulk Materials

> Offering the highest levels of sensitivity for inspecting various types of powders and fine-grained bulk materials

> Ideal for inspecting product while inflight between the weigher and bagge


Metal Separation Using a Reject Diverter System

> Flap type reject diverter system is suitable for various types of powders and fine-grained bulk materials






Minimal Installation Space

> Installment in restricted spaces in vertical packaging application between the weigher and bagger.


Unrivalled Detection Sensitivity

> The use of high frequency technology combined with enhanced filtering techniques delivers the highest levels of sensitivity across all metal types.


Full Color Touch Screen (7 inch TFT LCD)

> An intuitive and convenient full color touch screen, containing regional languages and user manual


Connectivity to External Devices

> Backing up inspection history and etc., by using a USB removable disk and reviewing the data on a PC.

> Monitoring real-time operating status for multiple metal detectors through the connective access to LAN.

> Interlocking the machine to various typed external devices through RS232C & 485 port.


Auto-Setting Function of the Inspection Items

> Auto-setting the machine for a testing product with the most suitable values even for beginners


Setting Function of a Variety of Items for Convenient Operation

> Up to 100 kinds of products are registered with each different setting value for convenient operation.


Manageable Metal Detecting History

> Detection history by various classifications and periods (in a daily / weekly / monthly / period-specified way)

> Data on detection history accessibility by LCD screen, USB disk and Printer (Optional).


Easy Software Upgrade

> Easy software upgradability by USB and touch screen whenever the latest version is available


Password Setup Function

> Setting up each three different passwords depending on each status (a user, an administer and an engineer)


External Output Printer Setup Function

> Additional option for installing an external output printer for detection history






Movie Clip


Fall Type Metal Detector for Snack


Fall Type Metal Detector with Multi Scale Hopper


Fall Type Metal Detector with Vertical Packing Machine




NODescriptionMaterial
1Metal Detector HeadSUS304
2Controller BoxSUS304
3FrameSUS304
4PipePE
5Rejector DiverterSUS304
6Tower Lamp.

Tunnel Size (mm)6080100120150200250
Passing Size (mm)305070901201702200


Outputs

> Relay (5A) / 1A1B 2EA, DC24V SOL, AC220V 0.2A

Power Supply

> Single Phase (110 to 220V) & Three Phase (220 to 380V and etc.,)

> Free Cycle (50/60Hz)

> Fuse (3A)

Operating Temperature

> 0℃ to 50℃

(advised to use the machine under normal temperature)



Application






Download

Catalog-Now Systems-Metal Detector-NMD-530Series
