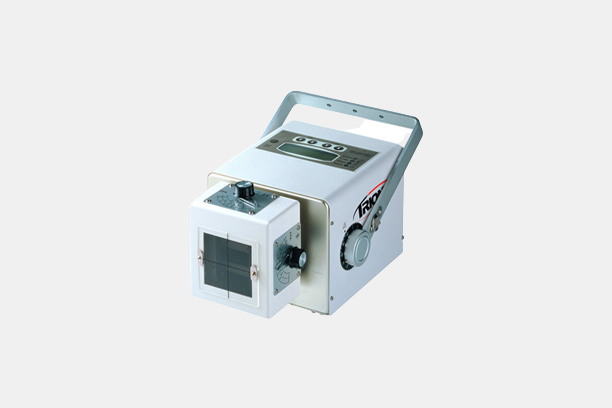

Portable X-ray Units
Model Name
31-HR-100P
Series
X-ray Products
Data
-
Manufacturer information
provider logo
NK X-RayPortable X ray equipment manufacturer
Problem with product info?
Update request
Manufacturer
NK X-Ray
Brand
-
SKU
27559
Product Name
Portable X-ray Units
Model Name
31-HR-100P
Size
-
Weight
-
Product Details

TECHNICAL SPECIFICATIONS COMPARISON
PORTABLE X-RAY UNITS



◎ Specification

Type

Line Frequency

Max. Tube Voltage / Current

100kVp / 30mA

Range

100kVp 10mA / 90kVp 15mA / 80kVp 20mA / 70kVp 25mA / 60kVp 30mA

Power Consumption

1.8kVA

Input Power

AC 110 / 220V

Collimator Lamp

12V 50W

Tube Focal Spot

1.8mm

Phase, Frequency

Single phase, 50/60Hz

Size

230(W)×175(D)×225(H)

Weight

16.7 kg



◎ Feature

- Carring case for each : Included
- Mobile Stand : Option


NK X-RayPortable X ray equipment manufacturer
We (SAMIL X-RAY) are a very specialized manufacturer of Portable X-ray and other relatives with high qualified technology and long experienced knowhows about it. Under background of aboves, we will do always promise our best efforts for your satisfaction and further be born again as one of the company trying to make a great contribution in the world medical marketing.
