NARA CORP

NARA CORP

Fluid Coupling

Model

Series

Fluid Coupling


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

- Variable speed Fluid coupling with integrated Step-up gearing

- Step-up gear located at Output side of Fluid coupling

- Suitable for High power and high speed facilities, e.g. high speed compressor

- Self-supporting design with Horizontal Split Housing

- Sleeve bearing for high-speed application

- Integrated Gear pump for oil circulation and external Auxiliary lubrication oil pump

- Space optimized by combination of integrated Step-up Gear and Fluid coupling

- Vibration damping

- Relived motor start-up and smooth acceleration of heavy load

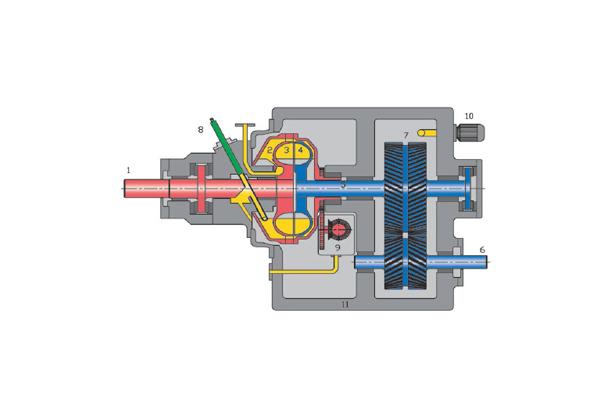

1. Input Shaft
2. Shell
3. Pump Wheel
4. Turbo Wheel
5. Turbo wheel Shaft
6. Output Shaft
7. Step-up Gear (Helical Gear)
8. Scoop Tube
9. Oil Pump
10. Aux, Lub. Oil Pump
11. Housing with Oil Tank


Download

Catalog-Nara corporation-Fluid Coupling
