product Image
MJ842
Model Name
MJ842
Series
Rotary Joint
Data
-
Manufacturer information
provider logo
MULTISHYDRO

Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more

Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Product Type
Machine
Brand
-
SKU
59026
Product Name
-
Model Name
MJ842
Size
-
Weight
-
Product Details

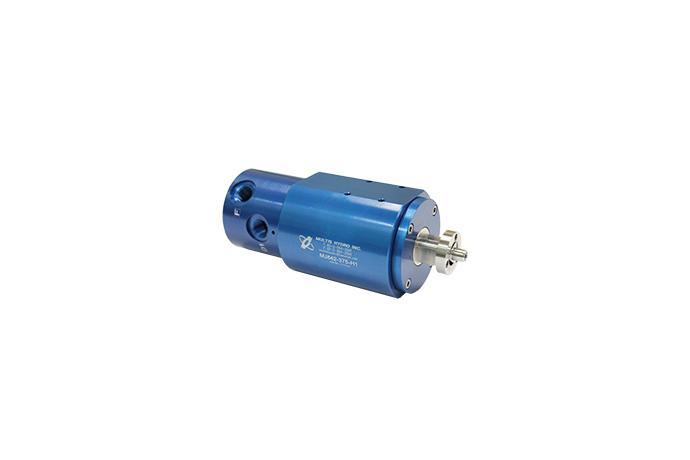

MULTIS HYDRO MJ842 rotates at a high speed and is structured to be used for the equipment which transfers air and coolant, both fluids. Oil Mist, provided through the air port, lubricates the seal face and bearings, thus guarantees the longevity even for high-speed work. The Coolant port is Cracking-Type structured to be also used in Dry-Running and its structure of sealing. It is especially designed to prevent the permeation of the coolant to the air line in case of the leakage. Rotary joints, which move vertically by its equipment structure, guarantee the excellent work for its high-accuracy process.



Standard Size -
Fluid Air, Coolant
Max. Pressure Air : 10 kgf/cm²
Coolant : 105 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed 12,000 RPM
