Mostar Co., Ltd. is a B2B company specializing in the manufacturing of micro coaxial cables and RF coaxial cables, producing various cable assembly products. The company demonstrates capabilities in supplying products to the global market through import and export trade activities of electrical and electronic materials and components. A technology-driven enterprise fulfilling diverse industry demands with customized solutions.

마이크로 동축 케이블 및 RF 동축 케이블을 전문적으로 제조하며, 다양한 케이블 어셈블리 제품을 생산하는 B2B 기업. 전기·전자 소재 및 부품의 수출입 무역 활동을 통해 글로벌 시장에 제품을 공급하는 역량. 고객 맞춤형 솔루션 제공으로 다양한 산업 분야의 요구를 충족시키는 기술 기업.

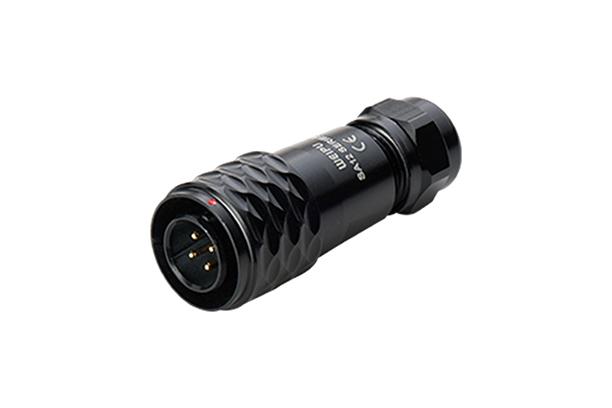

Coupling	Push-Pull
Shell material	Anodized aluminum
Insert material	PPS, Max temp. 260℃
Contact material	Brass with gold plating
Termination	Solder : SA6, SA8, SA10, SA12, SA16, SA20, SA28 Crimp : SA16, SA20, SA28 Screw : SA20, SA28
Cable outer diameter range	SA6 : 3.5~4mm SA8 : 4~5mm SA10 : 4~6.5mm SA12 I : 4~6.5mm, II : 5~8mm SA16 I : 5~8mm, II : 8~12mm SA20 : 8~12mm SA28 : 13~16mm
IP rating	IP67
Mating cycle	500
Temperature range	-40 ~ +85℃
Insulation resistance	200MΩ
Rated Current and Voltage	Rated Current : Up to 60A Rated Voltage : Up to 500V
Certification	CE, ROHS approval
