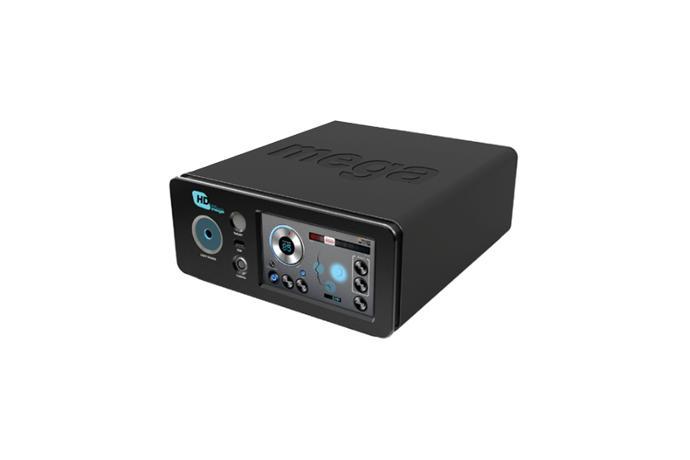

HD NET-260L ENT Visual System
This is a visual system used for correct diagnoses and procedures in the otorhinolaryngology field
Product Specifications
|
HD NET-260L Light Source |
|
|
Brightness |
250,000 lx (25mm Light Guide ends) |
|
CCT |
6500K |
|
CRI |
75 |
|
Life Time |
20,000 hrs |
Vision system (Cam & Capture board)
|
Camera |
1/3”, CMOS |
|
Adaptor |
f=22, HD ZOOM F18~ 32 |
|
Resolution |
1,280 * 720p |
|
Video Out |
DVI-D, HDMI |
|
Capture Mode |
1 / 2 / 4 / PIP / AVI Mode |
|
Image Store |
USB Memory, Ethernet (JPEG, AVI) |
|
PC, I/F |
Ethernet [10/100 Mbps] |
|
Printer |
HP (Laser Model) |
|
Power Consumption |
160 W |
|
Voltage |
90 ~ 250 V |
|
Frequency |
50 / 60 Hz |
|
Weight |
10 Kg |
|
Dimension (WxHxD) |
(W)328 ×(H)365 ×(D)141mm |
|
Telescope |
HD 0˚ 4Ø 175mm (Upward) HD 70˚ 4Ø 175mm (Upward) |
|
Monitor |
24.0” LED Monitor (16:9 IPS, PIP mode) 21.5” LED Monitor(16:9 IPS) |
Standard Accessories
- Software CD
- Video cable + BNC gender
- Power cable
- Foot switch
- DIV to D-sub gender
- LAN cable
- Light guide
- CCD Camera
