고속도 원심 분리기 (High Speed Centrifuge)

Model

Series

-


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Dimensions
640 x 630 x 840 mm




One chip microprocessor 컨트롤 적용
Easy to Key Pad를 이용한 쉽고 빠른 작동과 수정 가능
실험 조건을 저장할 수 있는 메모리 기능 보유
로터 멸균 가능
CFC Free 냉동시스템 적용으로 친환경적
RPM/RCF 자동 변환
가/감속 시간을 10단계로 설정 가능하여 분리층이 예민한 실험에 적합
Spin Down 기능 탑재 [Pulse 기능]
최대용량 Angle fixed rotor 4x1000ml 사용
회전속도 이상 감지
챔버내 온도 이상 감지
로터 진동 감지
시스템 에러
도어오픈 감지
자동로터 인식

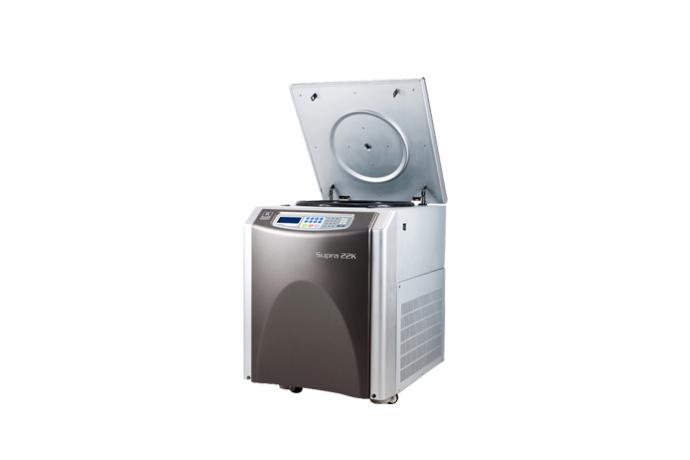

모델Supra 22K
Max. RPM22,000rpm
Max. RCF53,029 x g
MAX. capacity4 x 1000ml
Speed preset and display1 rpm
Temperature range-20°C to +40°C
Temperature limit set range0°C to ±30°C
Timer9 hrs 59 min 59 sec and “Hold” for free run
Acceleration time10 setting
Deceleration time10 setting
Programmability100 memory
Rotor recognition15 rotors
Rotor radius set range0.1 mm to max radius
Digital displayRPM, RCF, Time, Temperature, Temp. Limit,
Program, Accel/Decel Time, Rotor Number,
Rotor Radius,∫w2df, Self Test
Power requirements220V, 60Hz, single phase, 3.4kW
Noise level< 64dB
Dimension(W x D x H)640 x 630 x 840 mm
Weight230Kg
