Max Digital Tech

Max Digital Tech

DVD Control Unit

Model

Series

Exhibiting System


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

1. Description

○ This device can be used for DVD Remote Control System. By using Front Key
     Setting, it enables to remote DVD, auto or sensor control by reserve function.

○ DVD Control Unit can be applied to the system independently or auto remote
    operated by magic Control Unit upon any O/S program. Front LCD display helps
    easy setting.

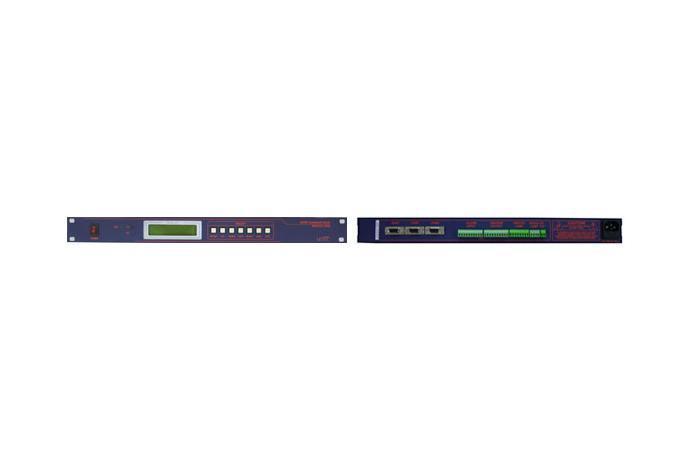

2. Panel Drawing

Max Digital Tech DVD Control Unit MDCU-200



3. Specification

○ Input Part
  - RS-232 Port : 2 Port
  - Alarm Input : 8 Port
  - DRY Contact Out : 8 Port
  - Switch Lapm Out : 8 Port
  - Serial / IR Cont : 1/2 Port

○ Control Part
  - Main Processor : 8 Bit Microprocessor
  - DC Power Out : DC 12V 1 Port
  - Clock : 11.0592 MHz
  - Memory : RAM 32K
  - Communication : Serial Asynchronous, RS-232C
  - Supporting Devices : IR Processed DVD or RS-232C DVD
  - Setting Range : TITLE 1 ~ 99 / CHAPTER 1 ~ 99 (when RS-232C use)
                             / 1sec ~ 59min 59sec
  - Display : LCD Display (16Character X 2 Line) Back Light

○ Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : Below 10Watt
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 44.5(H) * 300(D) mm
