  • Max Digital Tech

    Multi Processing Unit
    Model
    MMPU-300C
    Series
    CCTV System

    Product Description

    1. Description

    ○ This Extended Multi Processing Unit enables to control major devices for
        CCTV system.

    ○ It helps to maintain & manage major devices of CCTV system and its peripheral
        devices such as Video Matrix Switcher, Receiver, Key-Board, Sensor etc.

    ○ It has built-in control port to control various object in briefing room, administration
        room such as IR, RS-232/422, In/out contact.

    ○ Basic Shelf consists of 11 slots. It allows extension card slots for necessary
        application.

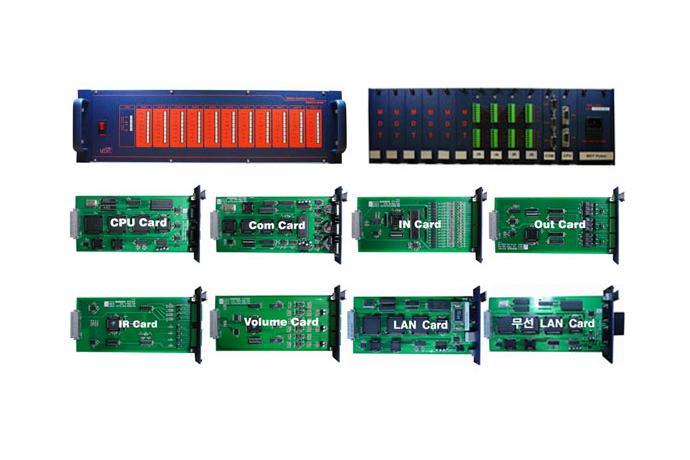

    2. Panel Drawing

    Max Digital Tech Multi Processing Unit MMPU-300C



    3. Specification

    ○ Main Shelf 【MMPCU-301MAIN】
      - Main Shelf  (1) Board Rear Insert Type
                           (2) Number of Card : 11EA Card
                           (3) Case
                             . Enclosure Type : Aluminum
                             . Type : 19" Rack Type
                             . Dimensions : 483(W) * 133.5(H) * 300(D) mm
      - Power Supply (1) Supply power to each card which is inserted into
                                     MPU(301MAIN)
                               (2) Input Power : AC 85V ~ 246V Free Volt
                               (3) Output Power : DC +12V, DC -12V
      - CPU (1) CPU card takes data from MPU-301Main and processes to
                      manage MPU-300C comprehensively.
                (2) Features : Communicate between cards in MPU-301main
                   . CPU : 80C52
                   . Memory : 32K
                   . Serial Port : RS-232 (RS-422: need to be adjusted) 2 Port
                   . 2Port의 Serial Port (integrated control by computer and key pad,
                                                    enable to be linked with additional devices)
                (3) MPU-301Main Front Led Display

    ○ Com Card 【MMPU-302COM】
        Interface device between main unit and external communication devices
        which takes data from
        CPU card and transmits to the specific port.
      -  Features (1) Serial port : RS 232C 3 port (RS-422: need to be adjusted)
                              D-SUB connector with 3 each card is available at rear panel
                              (extension slot available)
                        (2) CPU : 80C52
                        (3) Memory : 32K
                        (4) additional card available for extension

    ○ Input Card 【MMPU-303IN】
       Transmission card which takes specific data of contact, sensor, power and
       sends to CPU card.
      -  Features (1) number of contact point : 16Port
                         (2) additional card available for extension
                         (3) CPU : 89C52

    ○ Output Card 【MMPU-304OUT】
        Transmission card which takes data from CPU and sends to specific external
        devices via contact point.
      -  Features (1) number of contact point : 9Port
                        (2) additional card available for extension
                        (3) output power : DC 24V 1A

    ○ IR Card 【MMPU-305IR】
        control card for devices which are operated by remote controller such as
        VTR, DECK, DVD
      - Features (1) IR Port : 4 Port (IR and Serial Control)
                        (2) additional card available for extension
                        (3) CPU : 80C52

    ○ Volume Card 【MMPU-306VR】
      -Volume control card adjusts the level of volume for remote controlled devices
        by connecting amplifier.
      -Controls the level of volume via touch screen(operating software) or key pad by
        taking data from main control CPU.
      - Features (1) number of volume control port : 3port (M : 1ch, ST : 2ch)
                        (2) additional card available for extension of control channel
                        (3) CPU : 89C52

    ○ LAN Card 【MMPU-307LAN】
        LAN card enables to manage MPU-300C generally. It receives card data and
        processes.
       -  Features : (1) CPU: 89C52
                            (2) Memory : 32K
                            (3) Serial Port : RS-232 (or RS-422 Setting) 2 Port
                            (4) 2 Port의 Serial Port (1Port 232 / 1Port )
                            (5) Protocol : TCP/UDP/IP/ICMP/ARP/TELNET/DHCP
                            (6) Lan : 10Base-T Ethernet

    ○ W/L Lan Card [MMPU-307Wlan]
        W/l LAN card enables to manage MPU-300C generally. It receives card data and
        processes
       - CPU : 89C52
       - Memory : 32K
       - Serial Port : RS-232 (or RS-422 Setting) 1Port
       - IEEE802.11b wireless LAN support
       - Protocol : TCP/UDP/IP/ICMP/ARP/TELNET/DHCP
       - Lan : 10 Base-T Ethernet
