    Max Digital Tech

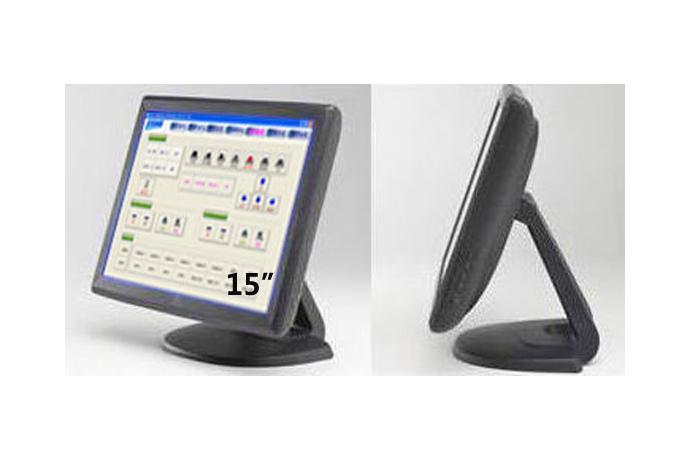

    Touch Panel
    Model
    MTS-15-2
    Series
    MDTC Control System

    Product Description

    1. Description

    ○ 15” Touch Panel is designed to work with Control PC, Main Control Unit (MMCU-
        100S, 150S, 200S, 150S, 300S etc.)

    ○ LCD Touch Panel Monitor is connected to PC by USB port, used without
        keyboard/mouse and it takes five-ultrasonic cables.



    2. Panel Drawing

    Max Digital Tech Touch Panel MTS-15-2



    3. Specification

    ○ General Part
      - Case/bezel color : Dark gray
      - Display Size : 15형 diagonal
      - Useful screen area : Horizontal: 12.0" (304 mm), Vertical: 9.0" (228 mm)
      - Monitor dimensions : Width: 13.8" (350 mm), Height (inc. base): 12.2" (310 mm),
                                           Depth (inc. base): 6.9" (175 mm)
      - Resolution : 1024 x 768
      - Colors : 16.2 million with dithering
      - Brightness  LCD panel : 250 cd/m2
      - Touchscreen : IntelliTouch (five-ultrasonic cables)
      - Touch Interface : Dual (Serial/USB)
      - Response time : 17 msec (typical)
      - Viewing angle (typical, from center) : Horizontal (left/right): ±60° or 120° total,
                                                                    Vertical (up/down): 40°/60° or 100° total
      - Contrast ratio : 400:1 (typical)
      - Input video format : RGB analog
      - Input sync format : Separate H & V sync, composite sync, sync-on-green
      - Input video signal connector : Mini D-Sub 15-Pin VGA type
      - Input frequency : Horizontal: 31.5-60.2 kHz, Vertical: 56.3-75 Hz
      - Vesa mount : 75 mm
      - Agency approvals : UL/CUL, FCC, CE, TÜV-GS, VCCI, IC, C-Tick

    ○ Power Part
      - Power source : AC100-240V , 50/60Hz
