1. Description

○ This MDVI-104 accepts a single link DVI source and distributes equalized
    digital video signals to 4 outputs without distortion or reduction of signals.

○ High resolution video quality can be connected to any video installation such as
    Project, PDP, LCD TV, LCD Monitor ect.

○ Multiple monitors can be used with DDC setup switch for Windows Plug&Play.

○ It is fully compatible with various resolution (VGA - UVGA) and TMDS MODE.

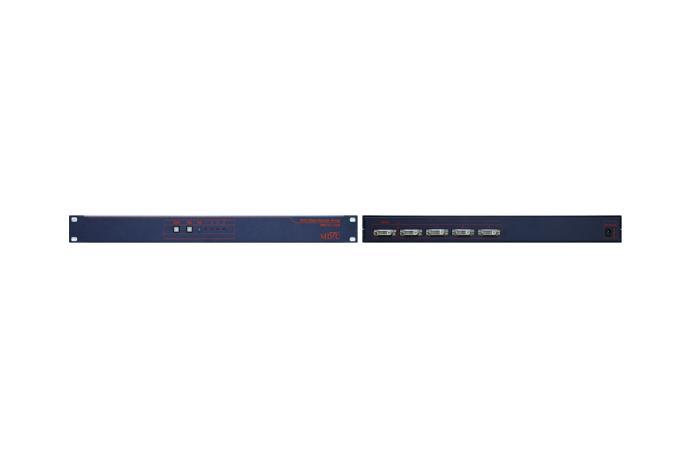

2. Panel Drawing

3. Specification

■ DVI Part
  - Input/Output number : 1 x 4
  - Input/Output type : TMDS signals, Digital RGB, DVI-D Single link
  - Input/Output connector : DVI-I Dual link female
  - Resolution range : UP to WUXGA, 1080p, 1920 x 1200, 60Hz
  - Maximum data rate : 4.95Gbps(1.65Gbps per color)
  - Standards DVI 1.0
  - Equalization Automatic
  - Re-clocking Automatic

■ Case & Power Part
  - Power source : DC 5V, 2A(Power adaptor)
  - Temperature : 0℃ ~ 40℃
  - Power consumption : Below 10Watt
  - Type : 19" Rack type
  - Dimensions : 483(W) * 44.5(H) * 150(D) mm
