Master

Master

KVM Extender

Model

Series

KVM Series & Multimedia Player


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

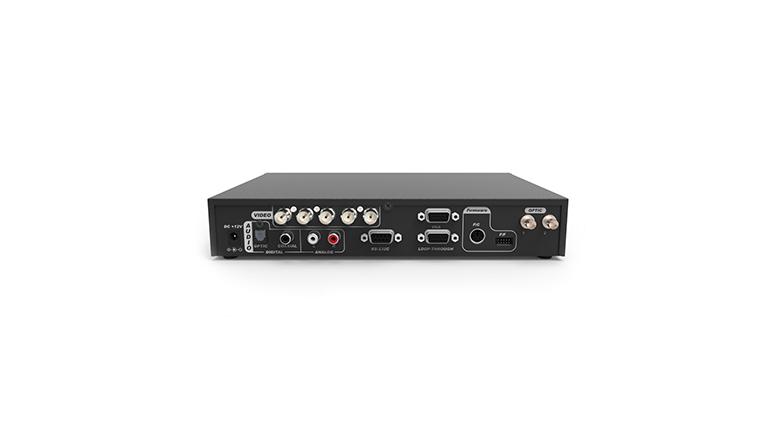

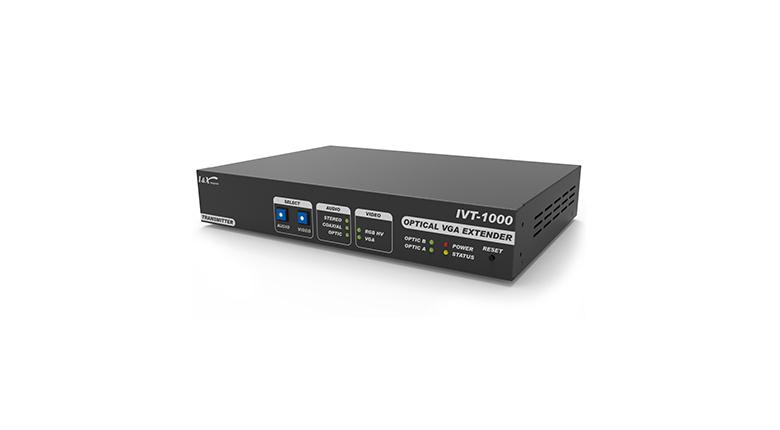

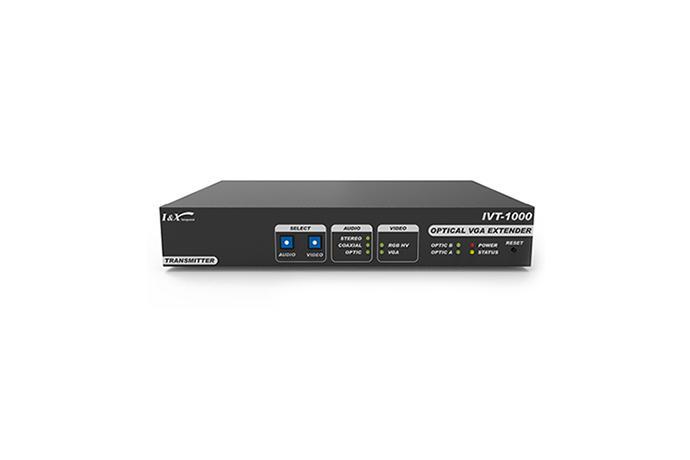

IVT-1000 is a optical KVM Extender that overcomes length restrictions of standard cables by using fiber optics to send high definition audio, video and RS-232C signals transmit up to 65,616ft.

RESOLUTION

 VGA(640x480) Up to WUXGA(1,920x1,200)

 OPTIC FIBER

 2FIBER OPTIC / 2LC CONNECTOR /

 SINGLE 20Km / Data Rate 4.25Gbps

 VIDEO

 RGB Data : 24bits, 3Channels Up to WUXGA(1920x1200)

 AUDIO

 Frequency : 20Hz ~ 20,000Hz

 CONTROL DATA

 Control Type : RS-232C / AUTO : Auto Adfustment Function

 POWER

 DC 12V / 5A (Adaptor : AC 110 ~ 240V, 50/60Hz)

 DIMENSION(mm)

 265 x 207 x 44

 WEIGHT(Kg)

 0.9Kg

 ENVIRONMENT

 -10°C~60°C / Humidity 80%
