Product Name

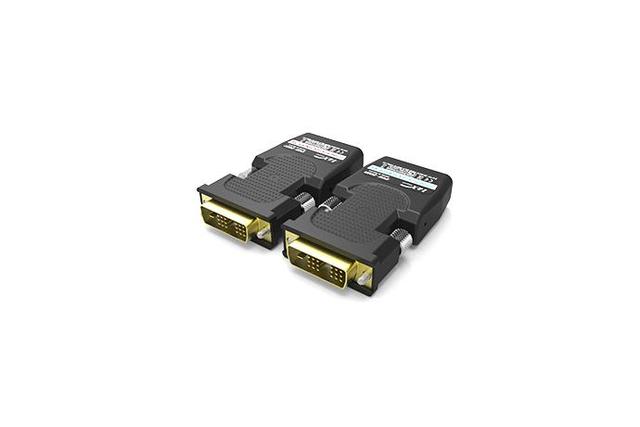

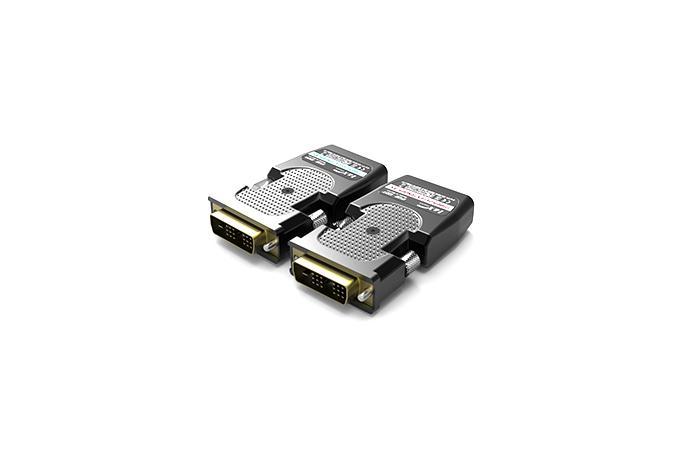

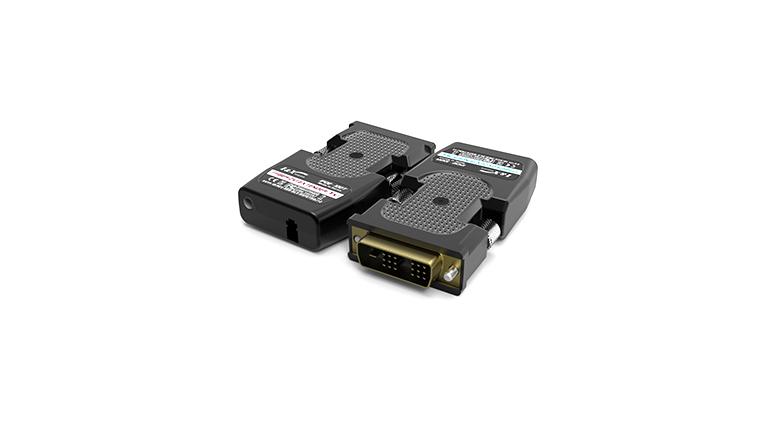

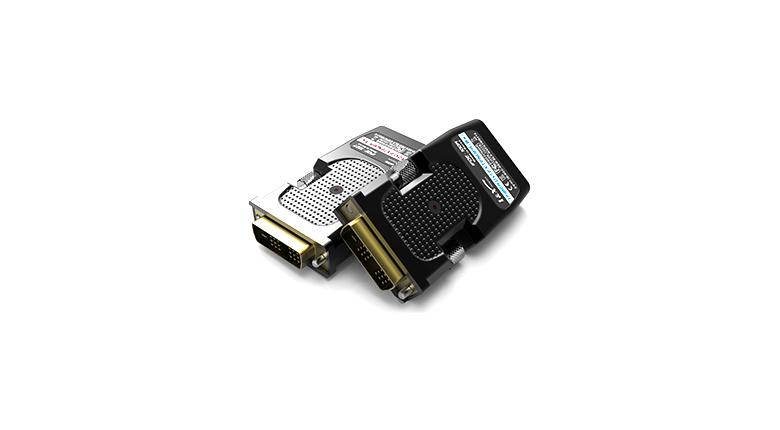

Fiber Optic Extender (Cable)
Model Name
IFDE-100T, 100R
Size
-
Weight
-
Product Details
IFDE-100T/100R FIBER extension system is designed to let digital video interface extends over 6,561ft away from the host by fiber transmissoin technology.
-. High speed and long-distance transmission of LC-type optical fiber designed
-. HDCP 1.2
-. 1,312ft 1LC multi mode fibers
-. KC certification : KCC-REM-BLX-MSFG1WBJ12
DISTANCE | 1LC Multi Mode : 400M |
RESOLUTION | WUXGA(1920 x 1200), HDTV(480i~1080i/p) |
SIGNAL BANDWIDTH | 1.65Gbps (Single Link) |
IN/OUTPUT CONNECTOR | DVI 19Pin(Male) and 1(One) LC Connector |
POWER | DC 5V/3A, 100~240V |
DIMENSION(mm) | 69 x 39 x 15 (mm) |
WEIGHT(Kg) | 0.2Kg |
ENVIRONMENT | -10°C~60°C / Humidity 80% |
